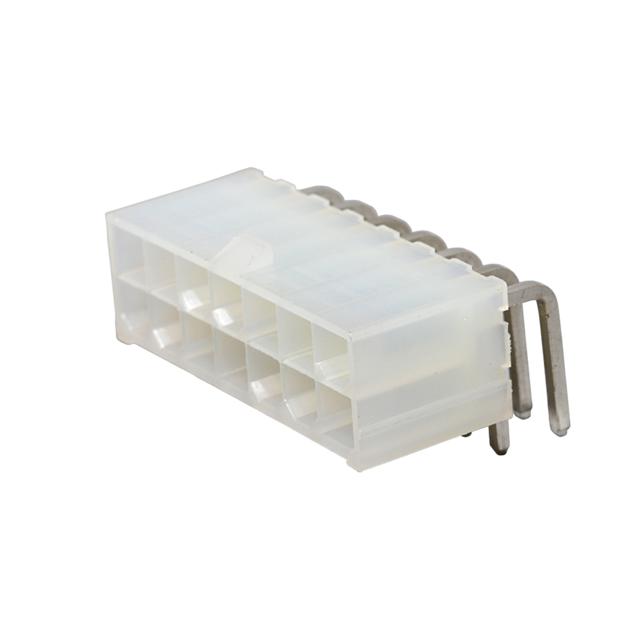

Molex 0353181420

0353181420 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
14
Contact Finish - Post:
Tin
edacadModel:
0353181420 Models
Overall Contact Length:
-
Insulation Height:
0.378" (9.60mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Industrial, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/3185068
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
0.208" (5.30mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.173" (4.40mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Fit Jr 35318
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
035318
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0353181420. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 14. It has possible tin contact post finishing. 0.378" (9.60mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, industrial, telecommunications. It comes in 2 of rows. It carries ul94 v-2 of material flammability rating. It has a typical square shape. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. It is 0.208" (5.30mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. 0.173" (4.40mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product mini-fit jr 35318, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 035318, a base product number of the product. The product is designated with the ear99 code number.
