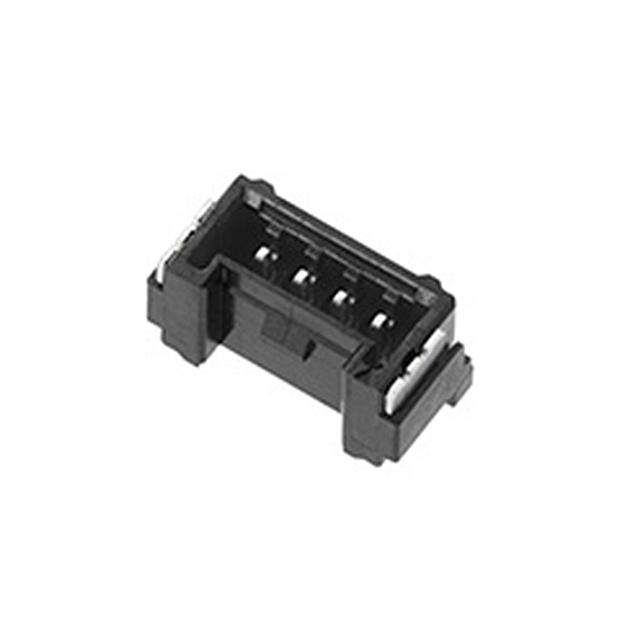

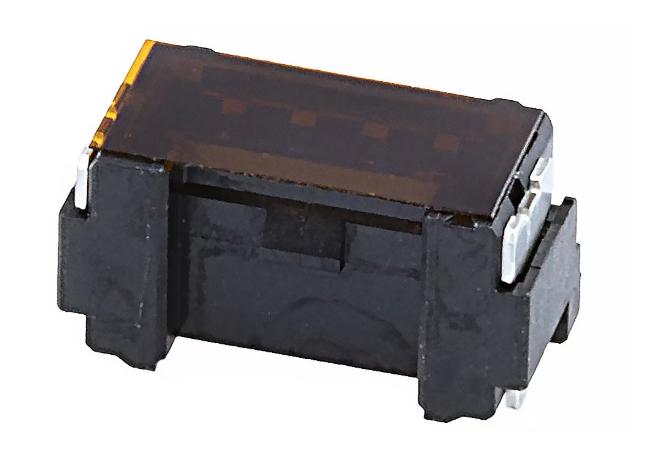

Molex 5055680481

5055680481 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
3.90µin (0.099µm)
Number of Positions:
4
Contact Finish - Post:
Gold
edacadModel:
5055680481 Models
Overall Contact Length:
-
title:
5055680481
Insulation Height:
0.165" (4.20mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7914342
Contact Shape:
Square
Mated Stacking Heights:
7.4mm
Voltage Rating:
50VAC/DC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
3.90µin (0.099µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
24 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
-
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
Micro-Lock PLUS 505568
Packaging:
Tape & Reel (TR)
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
505568
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5055680481. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 3.90µin (0.099µm) of post thickness. The product carries possible position value of 4. It has possible gold contact post finishing. 0.165" (4.20mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 7.4mm. Moreover, the product has a nominal 50vac/dc voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 3.90µin (0.099µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 24 weeks standard lead time. Additionally, the product's output is varies by wire gauge. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount configuration. The product micro-lock plus 505568, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust polyamide (pa), nylon, glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 505568, a base product number of the product. The product is designated with the ear99 code number.
