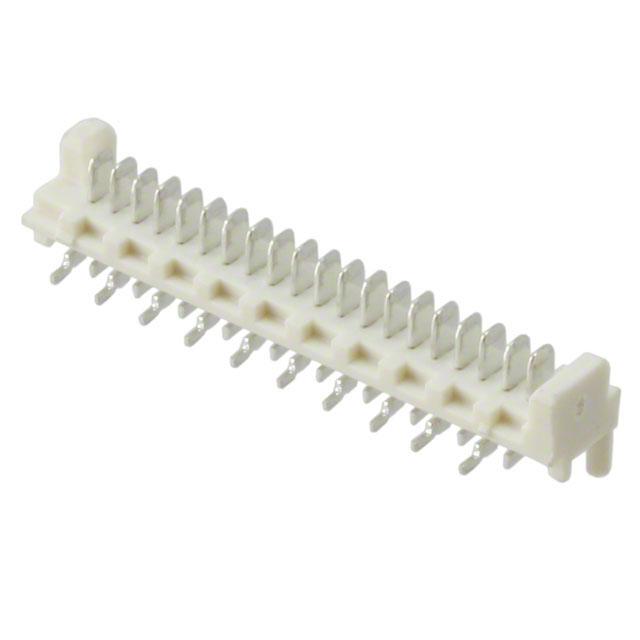

Molex 0908140920

0908140920 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
20
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 2 Wall
Overall Contact Length:
-
Insulation Height:
0.161" (4.10mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
0908140920 Models
Applications:
Automotive, General Purpose, Industrial, Medical
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2421352
Insulation Color:
Natural
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.085" (2.15mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
118.1µin (3.00µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
1.2A
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
Picoflex PF-50 90814
Contact Type:
Male Blade
Contact Material:
Brass
Base Product Number:
090814
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0908140920. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 20. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 2 wall. 0.161" (4.10mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, medical. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical rectangular shape. It has a robust polyamide (pa), nylon, glass filled insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. It is 0.085" (2.15mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 118.1µin (3.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 1.2a. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount configuration. The product picoflex pf-50 90814, is a highly preferred choice for users. It has typical contact type of male blade. The product is made from sturdy brass materials. Moreover, it corresponds to 090814, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
908140920 RoHS Cert of Compliance(Environmental Information)
pdf icon
Multiple Devices Location 05/Dec/2019(PCN Assembly/Origin)
pdf icon
99020-0011 Prod Spec(Datasheets)
pdf icon
Picoflex Brochure(Datasheets)
pdf icon
90814, 93405-x0,3 Pkg Spec(Other Related Documents)
pdf icon
90814-001 Pkg Spec(Other Related Documents)
pdf icon
090814yyyy Drawing(Product Drawings)
