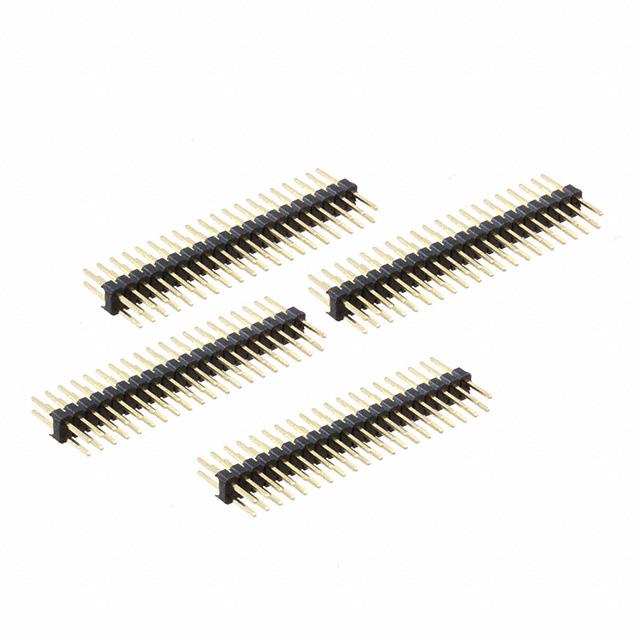

Schmartboard, Inc. 920-0198-01

920-0198-01 Schmartboard, Inc.
920-0198-01
Schmartboard, Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
40
Overall Contact Length:
-
Insulation Height:
-
Voltage Rating:
-
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
-
Package:
Bulk
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header, Breakaway
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
3 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
-
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
920-0198
ECCN:
EAR99
Checking for live stock

This is manufactured by Schmartboard, Inc.. The manufacturer part number is 920-0198-01. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 40. Furthermore, a bespoke product features unshrouded. It comes in 2 of rows. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in bulk package . It carries 0.100" (2.54mm) of row spacing. header, breakaway Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 3 weeks standard lead time. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. It has typical contact type of male pin. Moreover, it corresponds to 920-0198, a base product number of the product. The product is designated with the ear99 code number.
