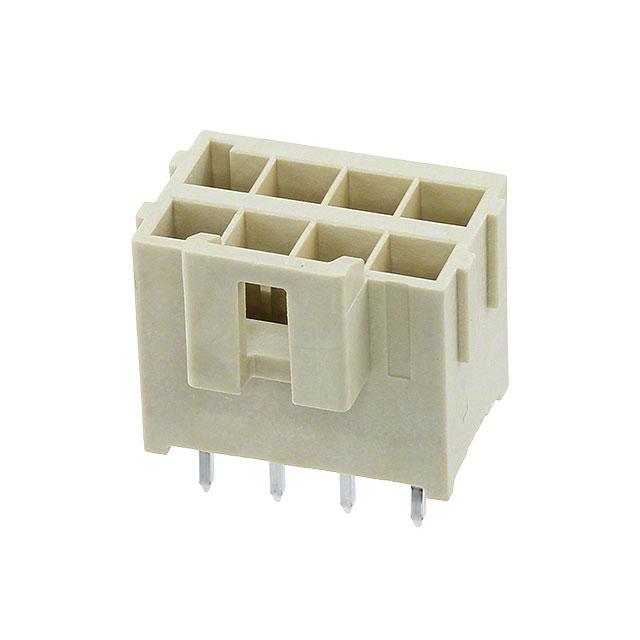

Molex 1722982108

1722982108 Molex
1722982108
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
60.0µin (1.52µm)
Number of Positions:
8
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.465" (11.80mm)
Voltage Rating:
400V
REACH Status:
REACH Unaffected
edacadModel:
1722982108 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5360223
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
26.99mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Bulk
Row Spacing - Mating:
0.181" (4.60mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
60.0µin (1.52µm)
Fastening Type:
Latch Holder
Termination:
Kinked Pin, Solder
standardLeadTime:
31 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.138" (3.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Ultra-Fit 172298
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
172298
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 1722982108. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 60.0µin (1.52µm) of post thickness. The product carries possible position value of 8. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.465" (11.80mm) of insulation height. Moreover, the product has a nominal 400v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical, military, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 26.99mm. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in bulk package . It carries 0.181" (4.60mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 60.0µin (1.52µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 31 weeks standard lead time. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.138" (3.50mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product ultra-fit 172298, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 172298, a base product number of the product. The product is designated with the ear99 code number.
