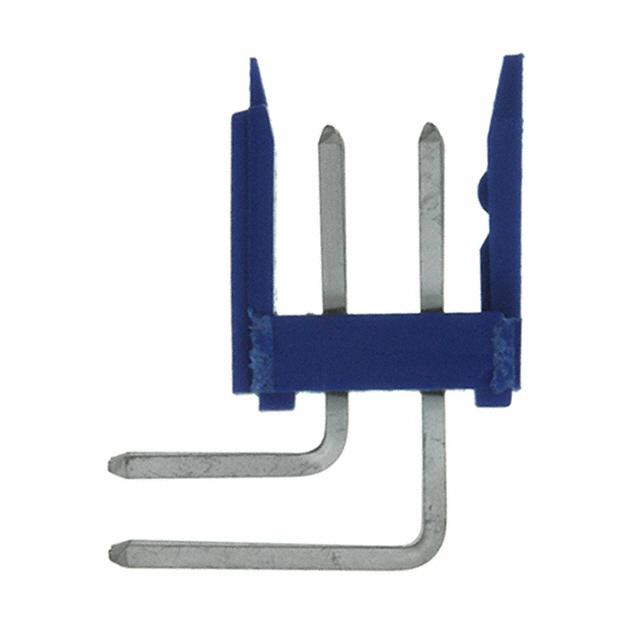

Amphenol ICC (FCI) 76383-402LF

76383-402LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 125°C
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
76383-402LF Models
Overall Contact Length:
-
Insulation Height:
0.307" (7.80mm)
Insulation Color:
Blue
REACH Status:
REACH Affected
Shrouding:
Shrouded - 2 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1001695
Contact Shape:
Square
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.197" (5.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.154" (3.91mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
Dubox™
Packaging:
Bulk
Insulation Material:
Polyester, Glass Filled
Contact Material:
Phosphor Bronze
Base Product Number:
76383
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 76383-402LF. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 4. It has possible tin contact post finishing. 0.307" (7.80mm) of insulation height. In addition, blue is the insulation color of the product. In addition, it is reach affected. Furthermore, a bespoke product features shrouded - 2 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 78.7µin (2.00µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.197" (5.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 3a. 0.154" (3.91mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product dubox™, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyester, glass filled insulation material. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 76383, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
76384(Datasheets)
pdf icon
Color chg 05/APR/2022(PCN Design/Specification)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 76383-402LF on website for other similar products.
We accept all major payment methods for all products including ET17738116. Please check your shopping cart at the time of order.
You can order Amphenol ICC (FCI) brand products with 76383-402LF directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Amphenol ICC (FCI) 76383-402LF. You can also check on our website or by contacting our customer support team for further order details on Amphenol ICC (FCI) 76383-402LF.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17738116 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Amphenol ICC (FCI)" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17738116.
Yes. We ship 76383-402LF Internationally to many countries around the world.
