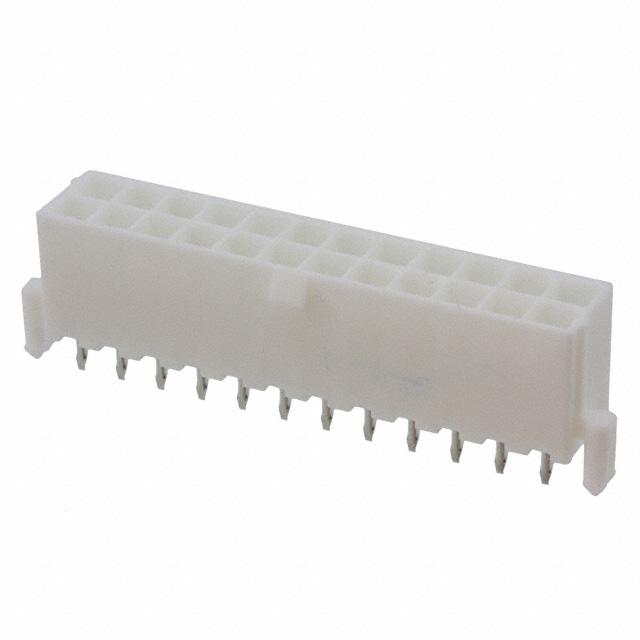

Molex 0460152407

0460152407 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
24
Contact Finish - Post:
Tin
edacadModel:
0460152407 Models
Overall Contact Length:
-
Insulation Height:
0.504" (12.80mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/2793385
Contact Shape:
Square
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Voltage Rating:
-
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
Mini-Fit Plus HCS 46015
Packaging:
Tray
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Material:
Copper Alloy
Base Product Number:
046015
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0460152407. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 24. It has possible tin contact post finishing. 0.504" (12.80mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-2 of material flammability rating. It has a typical square shape. However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole configuration. The product mini-fit plus hcs 46015, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 046015, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
0460152407 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mini-Fit Plus HCS Product Spec(Datasheets)
pdf icon
0460152407.pdf(3D Drawings)
pdf icon
46015-yyyy Drawing(Product Drawings)
