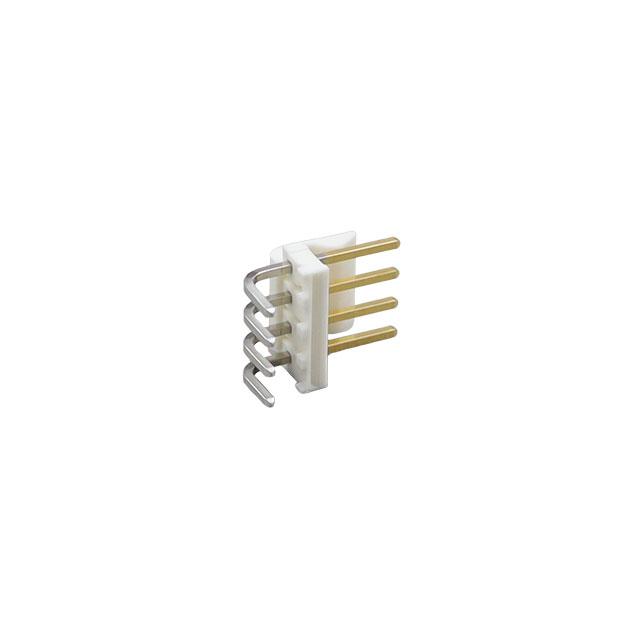

Molex 0417920513

0417920513 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
0417920513 Models
Overall Contact Length:
-
Insulation Height:
0.394" (10.00mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 1 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3309784
Contact Shape:
Square
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.450" (11.43mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
25 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.156" (3.96mm)
Pitch - Mating:
0.156" (3.96mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
KK396, 41792
Packaging:
Bulk
Insulation Material:
Polyester, Glass Filled
Contact Material:
-
Base Product Number:
041792
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0417920513. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 4. It has possible tin contact post finishing. 0.394" (10.00mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 1 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. header Connector type offer robust functionality. It is 0.450" (11.43mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 25 weeks standard lead time. 0.156" (3.96mm) is the given possible contact length (post) values. It has 0.156" (3.96mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product kk396, 41792, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyester, glass filled insulation material. Moreover, it corresponds to 041792, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
417920513 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Supplier 09/Dec/2022(PCN Assembly/Origin)
pdf icon
KK 396 Cosmetic Deviation 07/Jul/2014(PCN Other)
pdf icon
0417920513(Datasheets)
pdf icon
41792-0513.pdf(3D Drawings)
pdf icon
0417920513 Drawing(Product Drawings)
