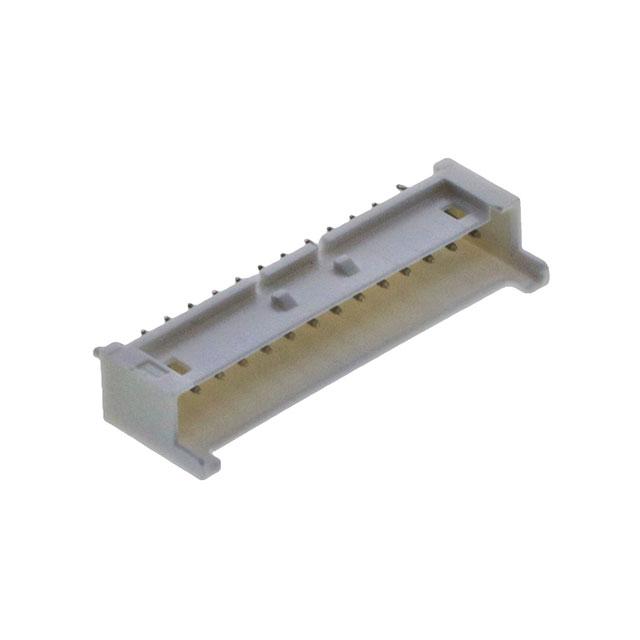

Molex 0533751410

0533751410 Molex
0533751410
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
14
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.453" (11.50mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
0533751410 Models
Applications:
General Purpose, Industrial
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3263208
Insulation Color:
White
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBTP), Glass Filled
Package:
Bag
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.157" (4.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Locking Ramp
Termination:
Kinked Pin, Solder
standardLeadTime:
9 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Mini-Lock 53375
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
053375
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0533751410. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 14. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.453" (11.50mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. The product is widely employed in general purpose, industrial. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, white is the insulation color of the product. It has a typical circular shape. It has a robust polybutylene terephthalate (pbtp), glass filled insulation material. It is shipped in bag package . header Connector type offer robust functionality. It is 0.157" (4.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 9 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product mini-lock 53375, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 053375, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
533751410 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Resin Supplier 17/Aug/2022(PCN Assembly/Origin)
pdf icon
533751410(Datasheets)
pdf icon
53375-1410.pdf(3D Drawings)
