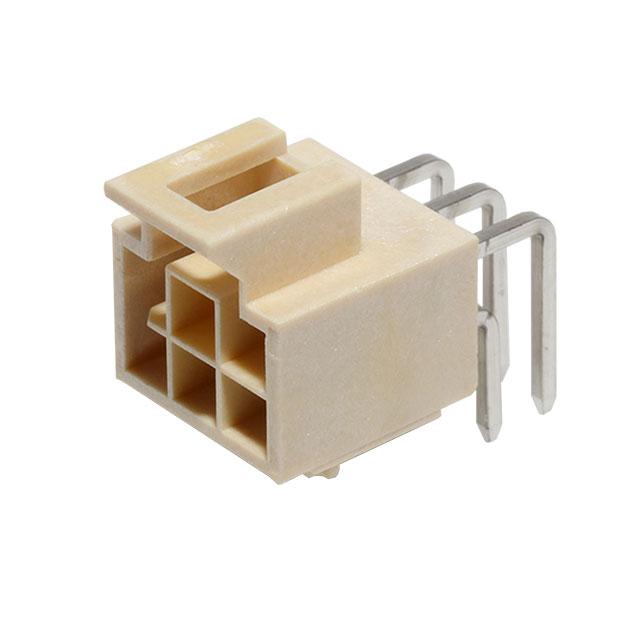

Molex 1053142306

1053142306 Molex
1053142306
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
59.0µin (1.50µm)
Number of Positions:
6
Contact Finish - Post:
Tin
edacadModel:
1053142306 Models
Overall Contact Length:
-
title:
1053142306
Insulation Height:
0.247" (6.28mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/6164270
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
0.098" (2.50mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
Nano-Fit 105314
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
105314
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 1053142306. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 59.0µin (1.50µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. 0.247" (6.28mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial, medical, military, telecommunications. It comes in 2 of rows. It has a typical square shape. Moreover, the product has a nominal 250v voltage rating. It carries 0.098" (2.50mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product nano-fit 105314, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 105314, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs Supplier 28/Feb/2022(PCN Assembly/Origin)
pdf icon
Nano-Fit Power Connector Overview(Datasheets)
pdf icon
105300-100 Prod Spec(Datasheets)
pdf icon
105314-2306.pdf(3D Drawings)
pdf icon
105314 Series Drawing(Product Drawings)
