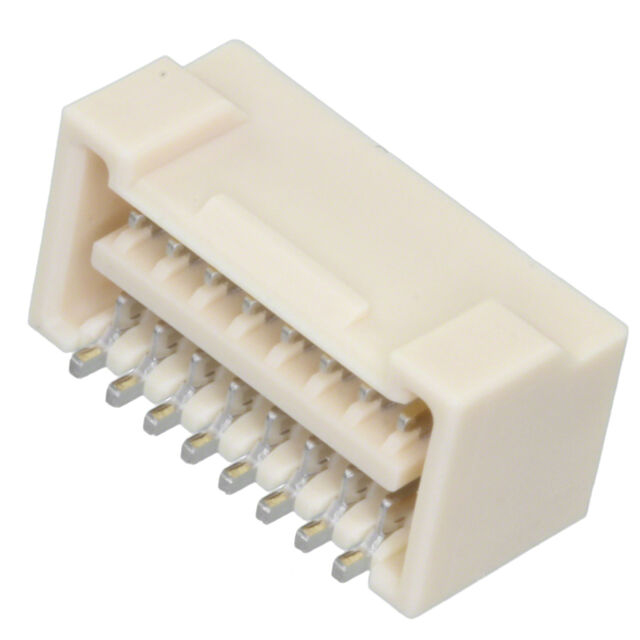

Molex 5041891670

5041891670 Molex
5041891670
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
16
Contact Finish - Post:
Tin
edacadModel:
5041891670 Models
Overall Contact Length:
-
title:
5041891670
Insulation Height:
0.241" (6.13mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4879370
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Lock
Termination:
Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
Micro-Lock 504189
Packaging:
Tape & Reel (TR)
Insulation Material:
Polyamide (PA), Nylon, Glass Filled
Contact Type:
Male Blade
Contact Material:
Brass
Base Product Number:
504189
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5041891670. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 16. It has possible tin contact post finishing. 0.241" (6.13mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch lock is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. It has 0.049" (1.25mm) of pitch-mating value. The product is available in surface mount, right angle configuration. The product micro-lock 504189, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust polyamide (pa), nylon, glass filled insulation material. It has typical contact type of male blade. The product is made from sturdy brass materials. Moreover, it corresponds to 504189, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
504189y070 Additional Location 22/Sep/2021(PCN Assembly/Origin)
pdf icon
Micro-Lock 1.25mm Pitch System(Datasheets)
pdf icon
504189-1670.pdf(3D Drawings)
pdf icon
5041891670 Drawing(Product Drawings)
