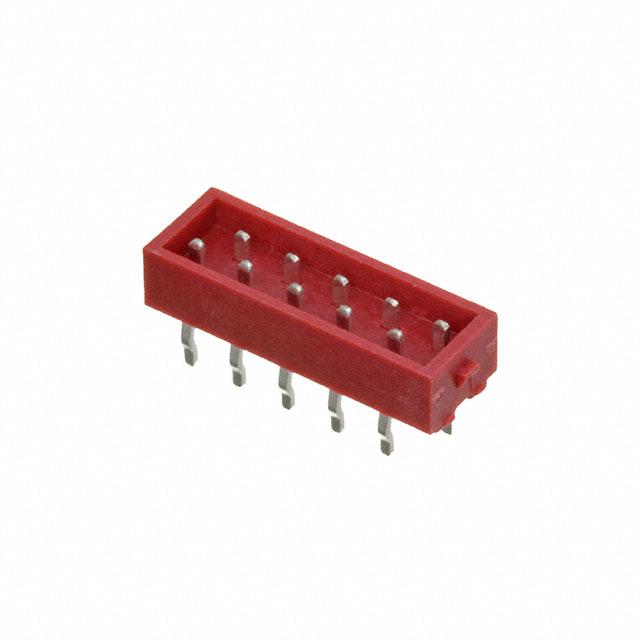

CNC Tech 3522-10-0100-99

3522-10-0100-99 CNC Tech
CNC Tech

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
10
Overall Contact Length:
-
Insulation Height:
0.146" (3.70mm)
Insulation Color:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
500VAC
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Kinked Pin, Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
-
Packaging:
Tube
Insulation Material:
Polyamide (PA9T), Nylon 9T
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
3522-10
ECCN:
EAR99
Checking for live stock

This is manufactured by CNC Tech. The manufacturer part number is 3522-10-0100-99. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 10. 0.146" (3.70mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. Moreover, the product has a nominal 500vac voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 20 weeks standard lead time. Additionally, the product's output is 1a. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. In addition, tube is the available packaging type of the product. It has a robust polyamide (pa9t), nylon 9t insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 3522-10, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
3522-xx-0100-99 Drawing(Product Drawings)
pdf icon
CNC Tech RoHS_REACH _CA Prop_Halogen(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 3522-10-0100-99 on website for other similar products.
We accept all major payment methods for all products including ET17725282. Please check your shopping cart at the time of order.
You can order CNC Tech brand products with 3522-10-0100-99 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Male Pins category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CNC Tech 3522-10-0100-99. You can also check on our website or by contacting our customer support team for further order details on CNC Tech 3522-10-0100-99.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17725282 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CNC Tech" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17725282.
Yes. We ship 3522-10-0100-99 Internationally to many countries around the world.
