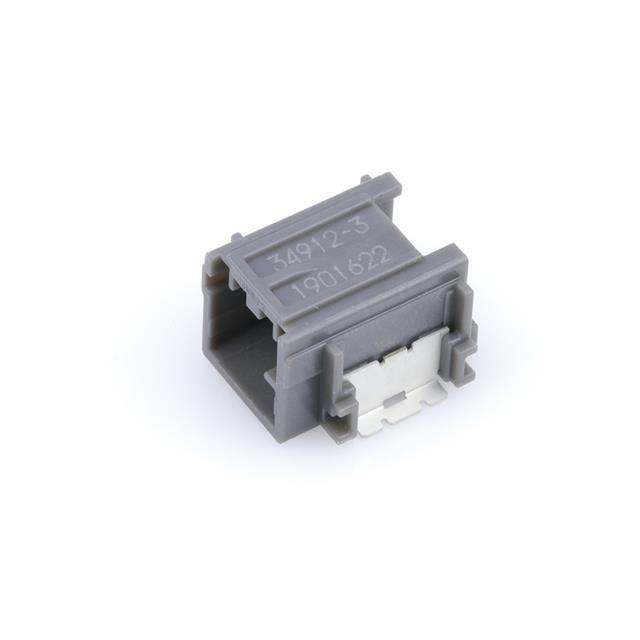

Molex 0349128022

0349128022 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
2
Overall Contact Length:
-
Insulation Height:
0.372" (9.44mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Gray
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Insulation Material:
Syndiotactic Polystyrene (SPS), Glass Filled
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.218" (5.55mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
12 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Mini50 34912
Contact Type:
Male Blade
Contact Material:
Brass
Base Product Number:
034912
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0349128022. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 2. 0.372" (9.44mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, gray is the insulation color of the product. It has a typical rectangular shape. It has a robust syndiotactic polystyrene (sps), glass filled insulation material. It is shipped in tape & reel (tr) package . header Connector type offer robust functionality. It is 0.218" (5.55mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 12 weeks standard lead time. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product mini50 34912, is a highly preferred choice for users. It has typical contact type of male blade. The product is made from sturdy brass materials. Moreover, it corresponds to 034912, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs Assembly 06/Sep/2022(PCN Assembly/Origin)
pdf icon
Mult Devs Marking 30/Oct/2023(PCN Design/Specification)
pdf icon
0349128022 Drawing(Product Drawings)
