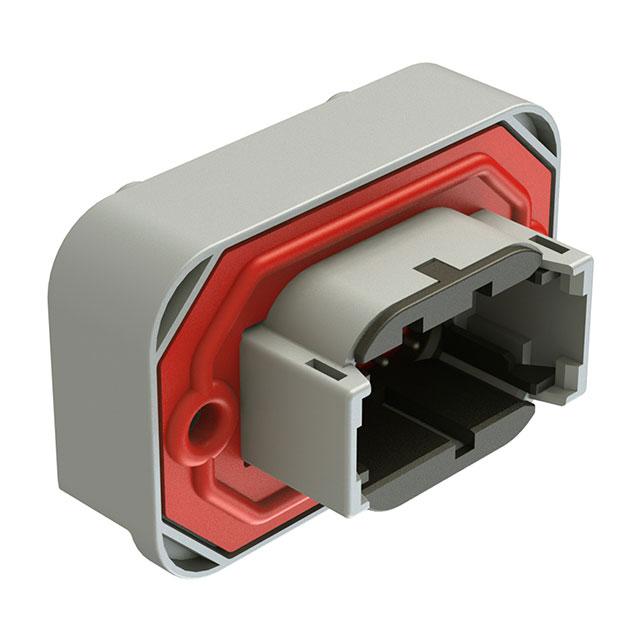

Amphenol Sine Systems Corp ATM15-08PB-BM04

ATM15-08PB-BM04 Amphenol Sine Systems Corp
ATM15-08PB-BM04
Amphenol Sine Systems Corp

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4030
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
8
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
1.189" (30.20mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
ATM15-08PB-BM04 Models
Applications:
Automotive, Industrial
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/9836564
Insulation Color:
Gray
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Receptacle
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
22 Weeks
Current Rating (Amps):
7.5A
Contact Length - Post:
0.120" (3.05mm)
Pitch - Mating:
-
Ingress Protection:
IP67
Features:
Board Guide, Mating Flange, Mounting Flange, Potting Wall
Mounting Type:
Through Hole
Series:
BoardLock™ ATM
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
ATM15
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Sine Systems Corp. The manufacturer part number is ATM15-08PB-BM04. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4030. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 8. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 1.189" (30.20mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, industrial. It comes in 2 of rows. In addition, gray is the insulation color of the product. It has a typical circular shape. It has a robust thermoplastic insulation material. It is shipped in tray package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 22 weeks standard lead time. Additionally, the product's output is 7.5a. 0.120" (3.05mm) is the given possible contact length (post) values. It is IP rated with ip67. The splendid features of the product include board guide, mating flange, mounting flange, potting wall. The product is available in through hole configuration. The product boardlock™ atm, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to atm15, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
BoardLock™ Brochure(Datasheets)
pdf icon
ATM15-08PB-BM04(Datasheets)
