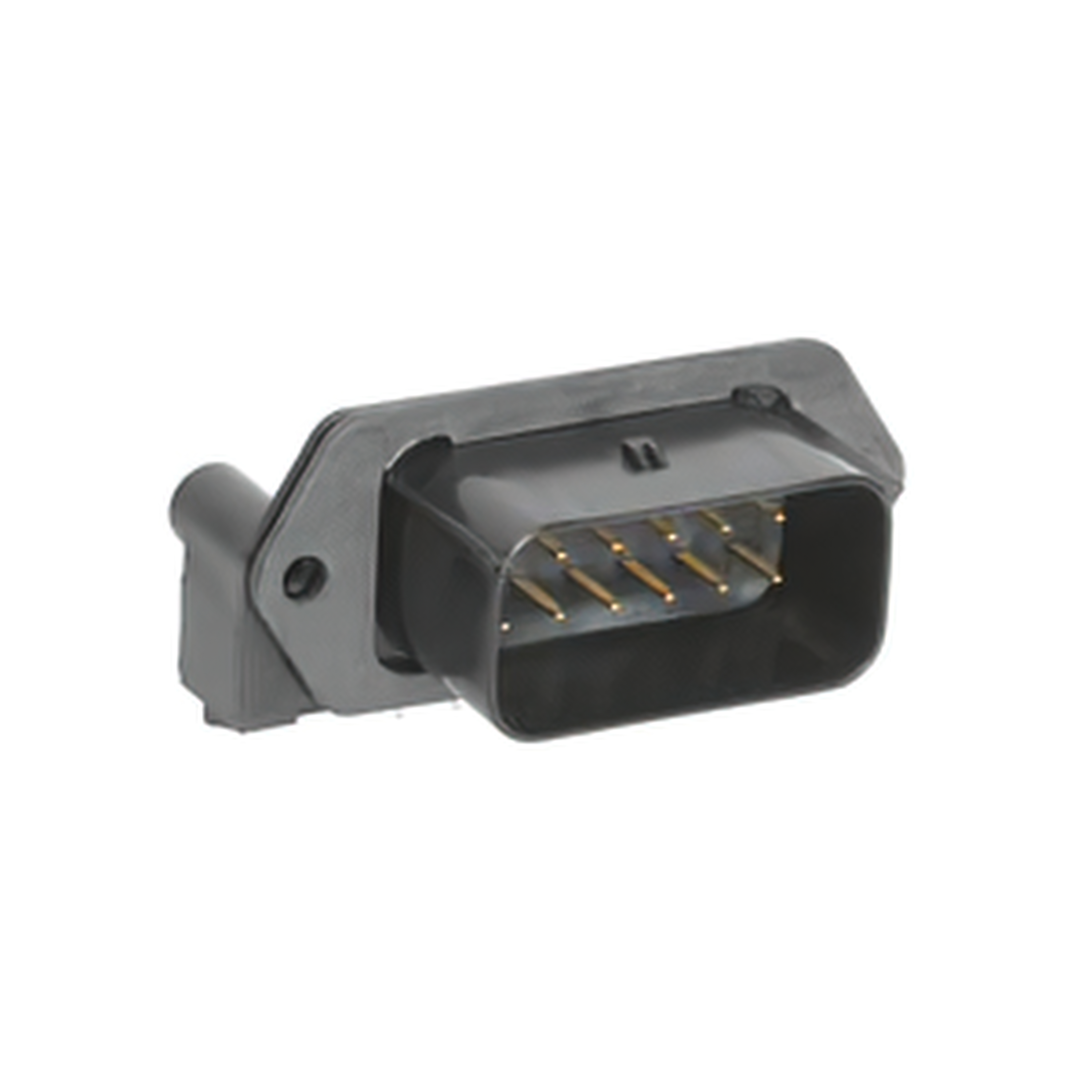

Molex 0194270103

0194270103 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
12
Contact Finish - Post:
Tin
edacadModel:
0194270103 Models
Overall Contact Length:
-
Insulation Height:
1.247" (31.67mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3183259
Contact Shape:
Square
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
-
Row Spacing - Mating:
0.230" (5.84mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Blade
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
26 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.230" (5.84mm)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Guide, Mounting Flange
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
MX150L 19427
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Material:
Copper Alloy
Base Product Number:
019427
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0194270103. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 12. It has possible tin contact post finishing. 1.247" (31.67mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.230" (5.84mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male blade. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 26 weeks standard lead time. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.230" (5.84mm) of pitch-mating value. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include board guide, mounting flange. The product is available in panel mount, through hole, right angle configuration. The product mx150l 19427, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 019427, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
194270103 RoHS Cert of Compliance(Environmental Information)
pdf icon
194270103(Datasheets)
pdf icon
MX150L Spec(Datasheets)
pdf icon
MX150L Series Assembly Instr(Datasheets)
pdf icon
19427-0103.pdf(3D Drawings)
