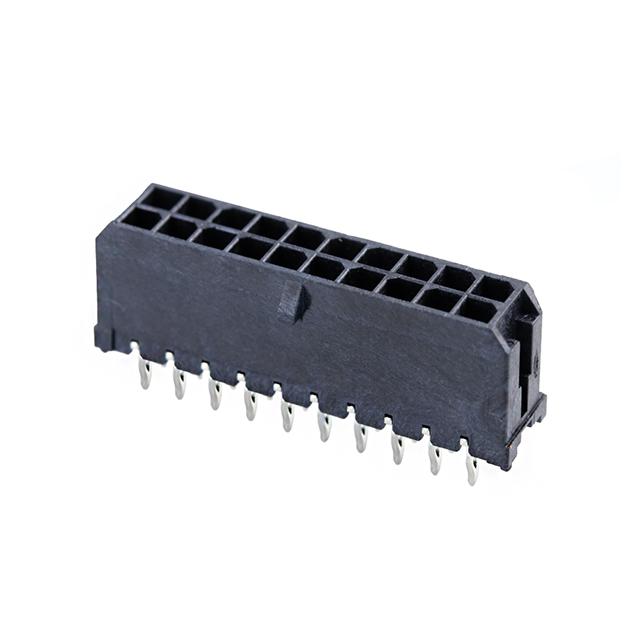

Molex 0449142001

0449142001 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
20
Contact Finish - Post:
Tin
edacadModel:
0449142001 Models
Overall Contact Length:
-
title:
0449142001
Insulation Height:
0.390" (9.91mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3311271
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
200.0µin (5.08µm)
Fastening Type:
Locking Ramp
Termination:
Press-Fit, Solder
standardLeadTime:
21 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.125" (3.18mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Micro-Fit 3.0 CPI 44914
Packaging:
Tray
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Type:
Male Pin
Contact Material:
Modified Tin/Brass Alloy
Base Product Number:
044914
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0449142001. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 20. It has possible tin contact post finishing. 0.390" (9.91mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in general purpose, medical, military, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.118" (3.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 200.0µin (5.08µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features press-fit, solder termination style. It has a long 21 weeks standard lead time. 0.125" (3.18mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product micro-fit 3.0 cpi 44914, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy modified tin/brass alloy materials. Moreover, it corresponds to 044914, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Micro-Fit 3.0 Overview(Product Brief)
pdf icon
449142001 RoHS Cert of Compliance(Environmental Information)
pdf icon
43045 Prod Spec(Datasheets)
pdf icon
44914-2001.pdf(3D Drawings)
pdf icon
044914 Drawing(Product Drawings)
