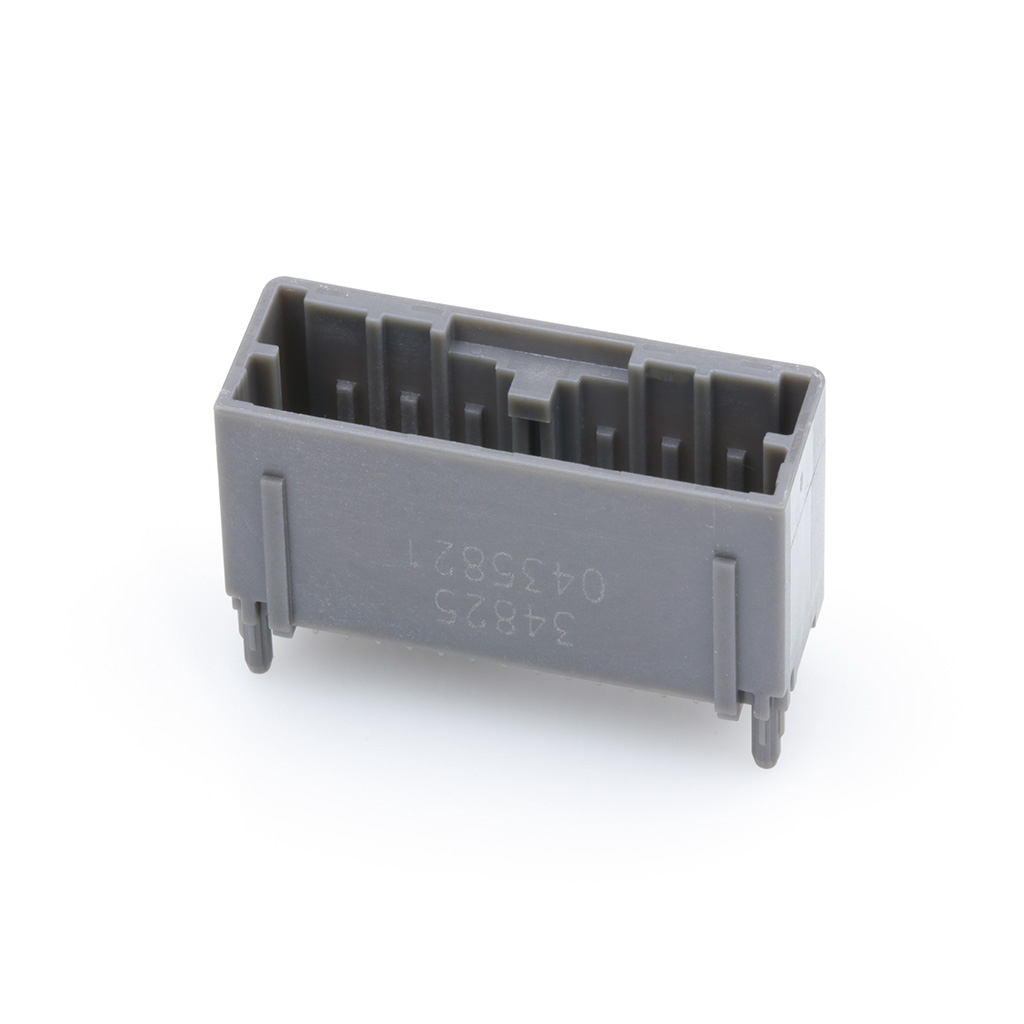

Molex 0348258242

0348258242 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
Operating Temperature:
-
Number of Positions:
24
Overall Contact Length:
-
Insulation Height:
0.614" (15.60mm)
Insulation Color:
Gray
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.218" (5.55mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.113" (2.87mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Through Hole
Series:
Mini50 34825
Packaging:
Tape & Reel (TR)
Insulation Material:
Syndiotactic Polystyrene (SPS), Glass Filled
ECCN:
EAR99
Base Product Number:
034825
Contact Material:
Brass
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0348258242. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product carries possible position value of 24. 0.614" (15.60mm) of insulation height. In addition, gray is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. header Connector type offer robust functionality. It is 0.218" (5.55mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. 0.113" (2.87mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in through hole configuration. The product mini50 34825, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust syndiotactic polystyrene (sps), glass filled insulation material. The product is designated with the ear99 code number. Moreover, it corresponds to 034825, a base product number of the product. The product is made from sturdy brass materials.
