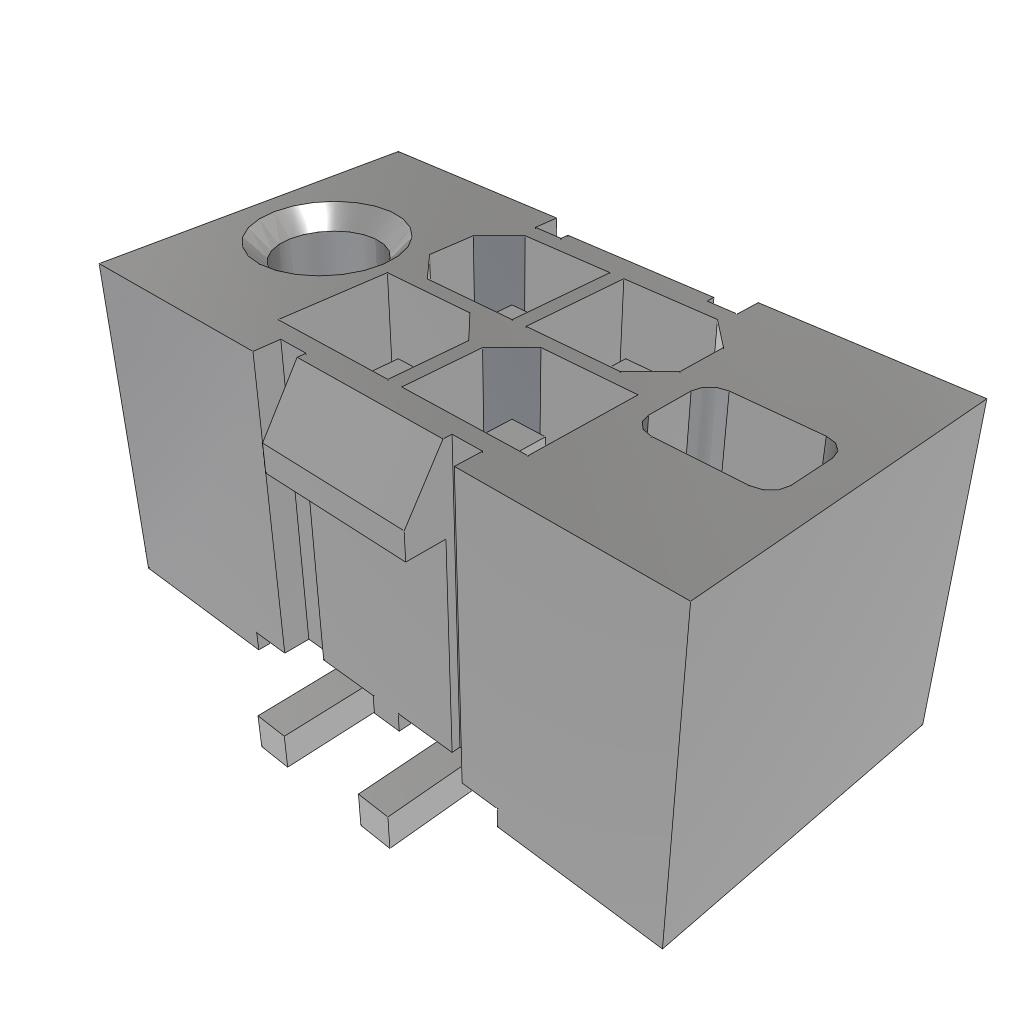

Samtec Inc. IPBT-102-H2-T-D-GP

IPBT-102-H2-T-D-GP Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
IPBT-102-H2-T-D-GP Models
Overall Contact Length:
-
Insulation Height:
0.380" (9.65mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9516343
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
400VAC, 565VDC
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
0.260" (6.60mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Mating Flange
Mounting Type:
Surface Mount
Series:
Power Mate® IPBT
Packaging:
Bulk
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
IPBT-102
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is IPBT-102-H2-T-D-GP. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 4. It has possible tin contact post finishing. 0.380" (9.65mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 400vac, 565vdc voltage rating. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. It is 0.260" (6.60mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include mating flange. The product is available in surface mount configuration. The product power mate® ipbt, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to ipbt-102, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
IPBT Series Datasheet 02(HTML Datasheet)
pdf icon
IPBS-102-01-T-D Test Report(Reliability Documents)
pdf icon
.165" Power Mate® Isolated Power Terminal Header(Datasheets)
pdf icon
IPBT Datasheet(Datasheets)
pdf icon
IPBS Series Other Related Documents 03(Other Related Documents)
pdf icon
.165" Power Mate® Isolated Power Terminal Header(Other Related Documents)
