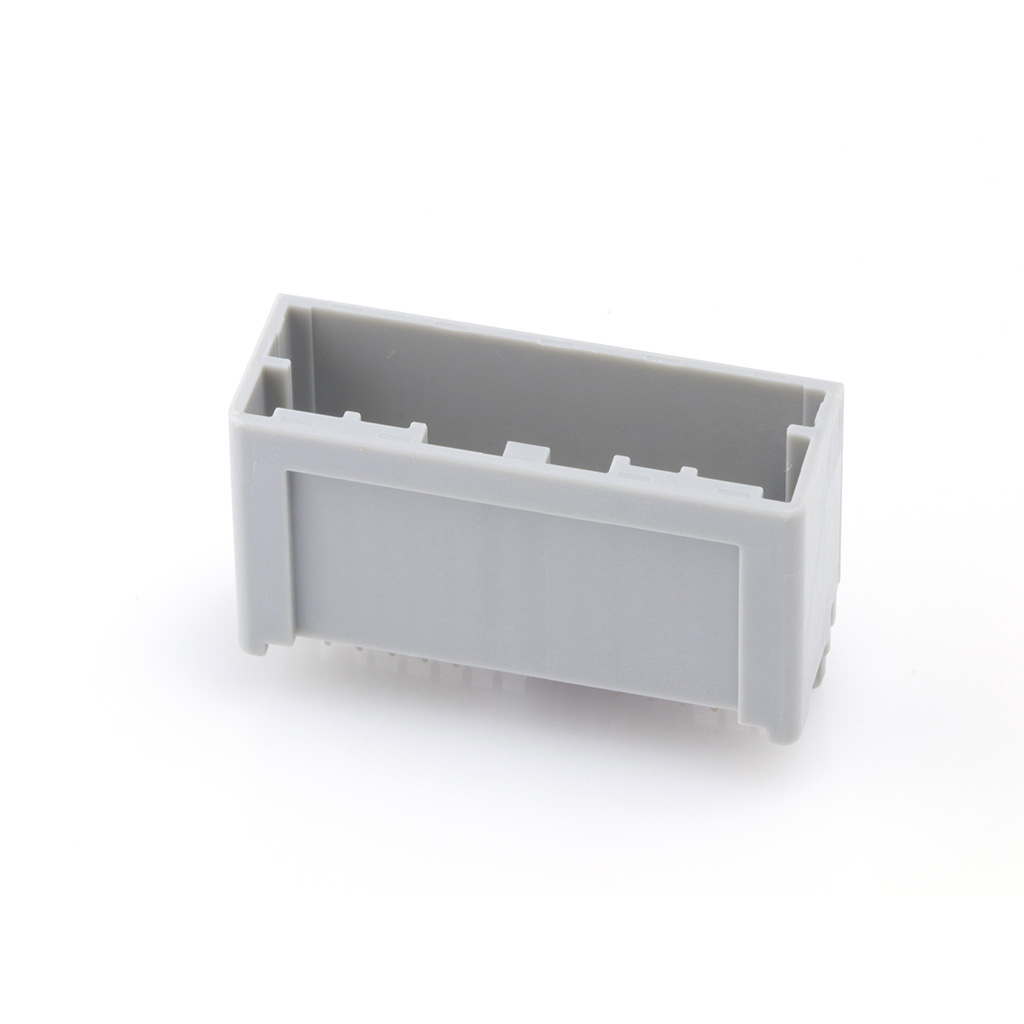

Molex 0348259241

0348259241 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
24
Contact Finish - Post:
Tin
edacadModel:
0348259241 Models
Overall Contact Length:
-
Insulation Height:
0.614" (15.60mm)
Insulation Color:
Gray
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5254703
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.218" (5.55mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.113" (2.87mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Through Hole
Series:
Mini50 34825
Packaging:
Tube
Insulation Material:
Syndiotactic Polystyrene (SPS), Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
034825
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0348259241. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 24. It has possible tin contact post finishing. 0.614" (15.60mm) of insulation height. In addition, gray is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. header Connector type offer robust functionality. It is 0.218" (5.55mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. 0.113" (2.87mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide, solder retention. The product is available in through hole configuration. The product mini50 34825, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust syndiotactic polystyrene (sps), glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 034825, a base product number of the product. The product is designated with the ear99 code number.
