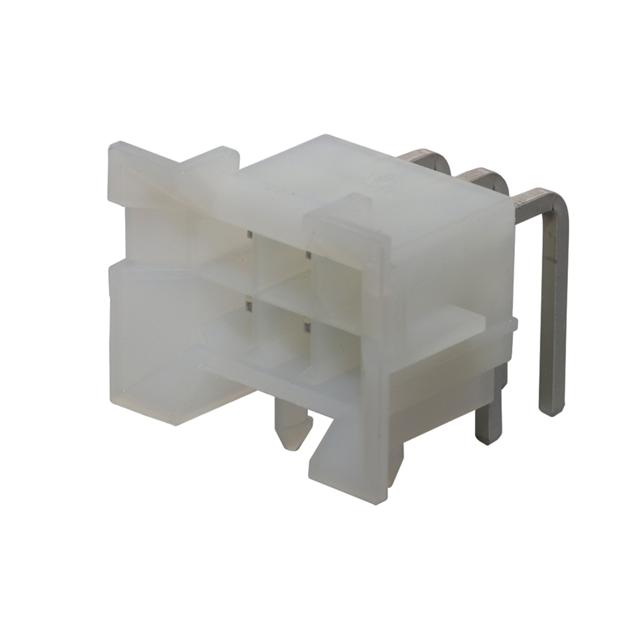

Molex 0015249067

0015249067 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
6
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.591" (15.00mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0015249067 Models
Applications:
General Purpose, Industrial, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/3122265
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6
Package:
Tray
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Blind Mating, Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Fit BMI 42404
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
001524
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0015249067. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 6. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.591" (15.00mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in general purpose, industrial, medical, telecommunications. It comes in 2 of rows. It carries ul94 v-2 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical square shape. It has a robust polyamide (pa66), nylon 6/6 insulation material. It is shipped in tray package . It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. 0.130" (3.30mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include blind mating, board lock. The product is available in through hole, right angle configuration. The product mini-fit bmi 42404, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 001524, a base product number of the product. The product is designated with the ear99 code number.
