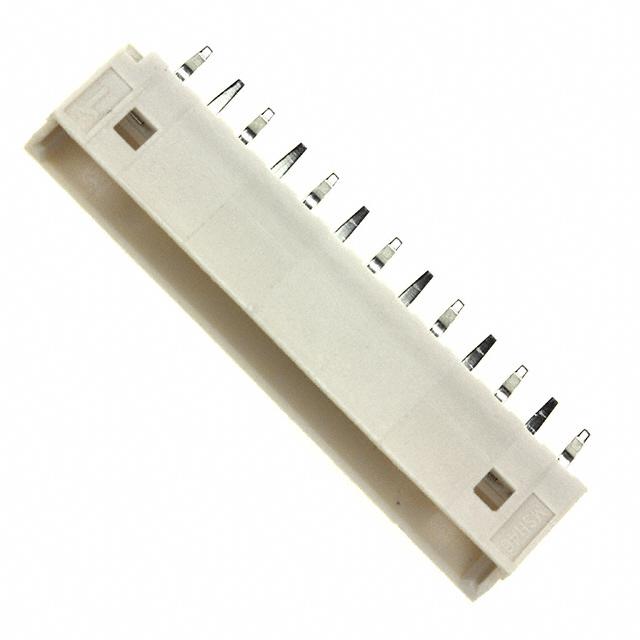

Molex 0530141310

0530141310 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
13
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
0.327" (8.30mm)
Insulation Height:
0.230" (5.85mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0530141310 Models
Applications:
General Purpose, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1785074
Insulation Color:
Natural
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA66), Nylon 6/6, Glass Filled
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.122" (3.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Detent Lock
Termination:
Kinked Pin, Solder
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
MicroBlade 53014
Contact Type:
Male Blade
Contact Material:
Phosphor Bronze
Base Product Number:
053014
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0530141310. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 13. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. The product has a 0.327" (8.30mm) of overall contact lentgh. 0.230" (5.85mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in general purpose, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, natural is the insulation color of the product. It has a typical rectangular shape. It has a robust polyamide (pa66), nylon 6/6, glass filled insulation material. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.122" (3.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, detent lock is the Fastening Type of the product. The product features kinked pin, solder termination style. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product microblade 53014, is a highly preferred choice for users. It has typical contact type of male blade. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 053014, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
53014-1310 RoHS Cert of Compliance(Environmental Information)
pdf icon
DK OBS NOTICE(PCN Obsolescence/ EOL)
pdf icon
0530141310.pdf(3D Drawings)
pdf icon
53014-xx10 Series Drawing(Product Drawings)
