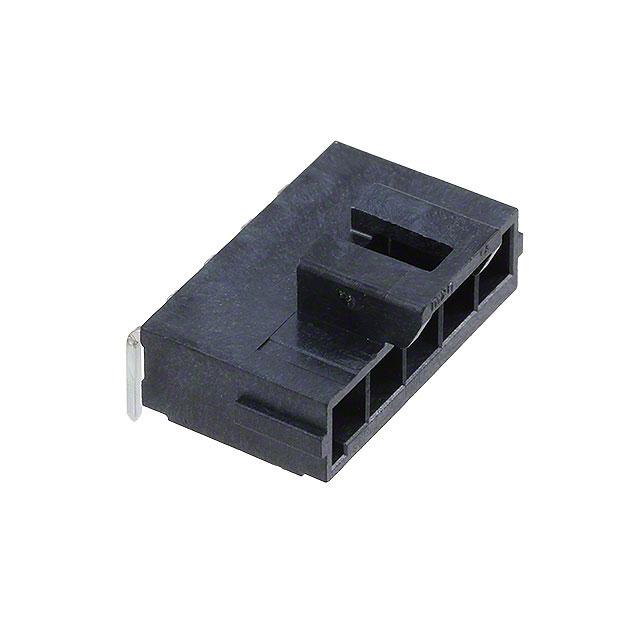

Molex 1723101205

1723101205 Molex
1723101205
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 120°C
Contact Finish Thickness - Post:
60.0µin (1.52µm)
Number of Positions:
5
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.353" (8.96mm)
Voltage Rating:
400V
REACH Status:
REACH Unaffected
edacadModel:
1723101205 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/5360287
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Latch Holder
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.138" (3.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole, Right Angle
Series:
Ultra-Fit 172310
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
172310
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 1723101205. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 120°c operating temperature range. Additionally, it features 60.0µin (1.52µm) of post thickness. The product carries possible position value of 5. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.353" (8.96mm) of insulation height. Moreover, the product has a nominal 400v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical, military, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in bulk package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.138" (3.50mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole, right angle configuration. The product ultra-fit 172310, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 172310, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs Cancel Alternative Supplier 01/Jun/2021(PCN Assembly/Origin)
pdf icon
Mult Devs 01/Sep/2021(PCN Obsolescence/ EOL)
pdf icon
Ultra-Fit Power Conn Overview(Datasheets)
pdf icon
172310-1205.pdf(3D Drawings)
pdf icon
1723101205 Drawing(Product Drawings)
