Molex 0554560469

0554560469 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Detailed Description:

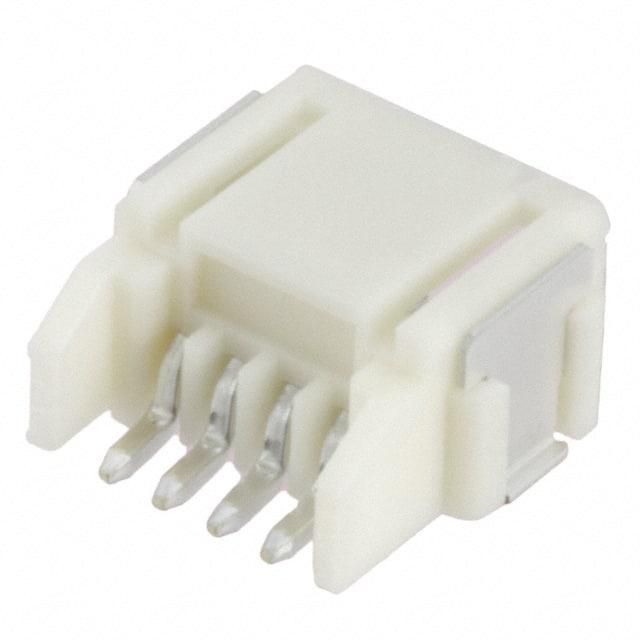

Connector Header Surface Mount, Right Angle 4 position 0.049" (1.25mm)
Number of Positions:
4
Base Part Number:
055456
Insulation Height:
0.177" (4.50mm)
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Insulation Color:
Natural
Connector Type:
Header
Contact Length - Mating:
0.110" (2.79mm)
Number of Positions Loaded:
All
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.049" (1.25mm)
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
Mini Mi II 55456
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyamide (PA), Nylon
Contact Material:
Brass
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0554560469. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It features connector header surface mount, right angle 4 position 0.049" (1.25mm). The product carries possible position value of 4. Base Part Number: 055456. 0.177" (4.50mm) of insulation height. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex's product offers user-desired applications. In addition, natural is the insulation color of the product. header Connector type offer robust functionality. It is 0.110" (2.79mm) contact mated. However, all is the Number of Positions Loaded. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product mini mi ii 55456, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust polyamide (pa), nylon insulation material. The product is made from sturdy brass materials.
