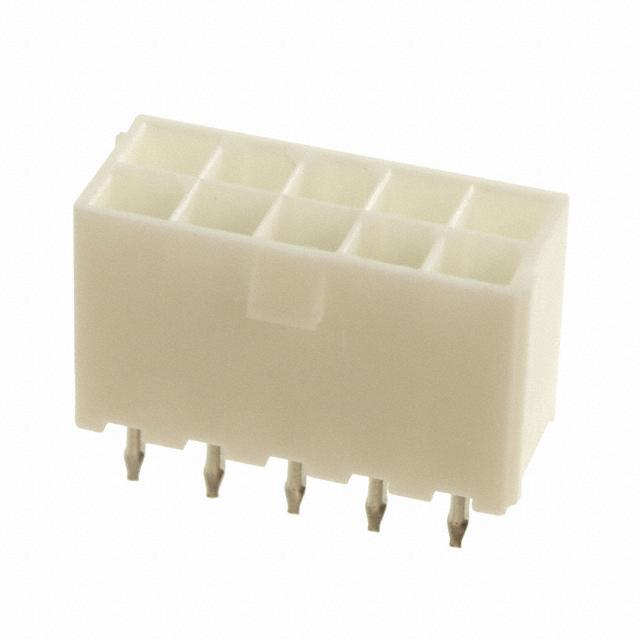

Molex 0039310100

0039310100 Molex
0039310100
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
10
Contact Finish - Post:
Tin
edacadModel:
0039310100 Models
Overall Contact Length:
-
Insulation Height:
0.504" (12.80mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2183678
Contact Shape:
Square
Contact Finish Thickness - Mating:
35.4µin (0.90µm)
Voltage Rating:
-
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
91 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Mini-Fit Jr 5556
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Material:
Brass
Base Product Number:
003931
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0039310100. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 10. It has possible tin contact post finishing. 0.504" (12.80mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 35.4µin (0.90µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.165" (4.20mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 91 weeks standard lead time. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The product is available in through hole configuration. The product mini-fit jr 5556, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to 003931, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
39-31-0100 RoHS Cert of Compliance(Environmental Information)
pdf icon
Multiple Devices 02/Nov/2015(PCN Assembly/Origin)
pdf icon
Mult Devs Product Improvement 17/Feb/2022(PCN Design/Specification)
pdf icon
Mult Devs Cancel Product Improvement 09/Feb/2022(PCN Design/Specification)
pdf icon
Various Series Tooling 23/Jul/2014(PCN Other)
pdf icon
0039310100(Datasheets)
pdf icon
5556-001 Prod Spec(Datasheets)
pdf icon
Mini-Fit Jr Test Summary(Other Related Documents)
pdf icon
0039310100.pdf(3D Drawings)
pdf icon
0039310100(Product Drawings)
