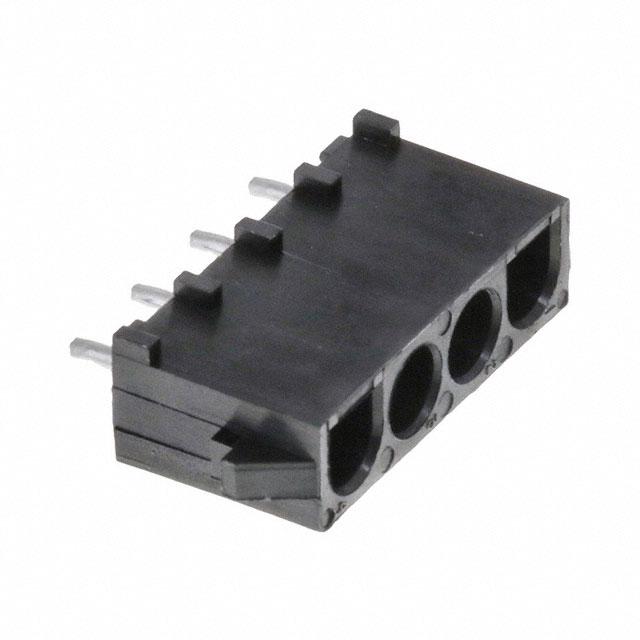

Molex 0367590103

0367590103 Molex
0367590103
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
0367590103 Models
Overall Contact Length:
-
Insulation Height:
0.550" (13.97mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/3185337
Contact Shape:
Circular
Contact Finish Thickness - Mating:
137.8µin (3.50µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.169" (4.30mm)
Pitch - Mating:
0.250" (6.35mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
MLX 42002
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Material:
-
Base Product Number:
036759
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0367590103. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 4. It has possible tin contact post finishing. 0.550" (13.97mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-2 of material flammability rating. It has a typical circular shape. However, 137.8µin (3.50µm) is the "Contact Finish Thickness - Mating" of the product. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. 0.169" (4.30mm) is the given possible contact length (post) values. It has 0.250" (6.35mm) of pitch-mating value. The product is available in through hole configuration. The product mlx 42002, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. Moreover, it corresponds to 036759, a base product number of the product. The product is designated with the ear99 code number.
