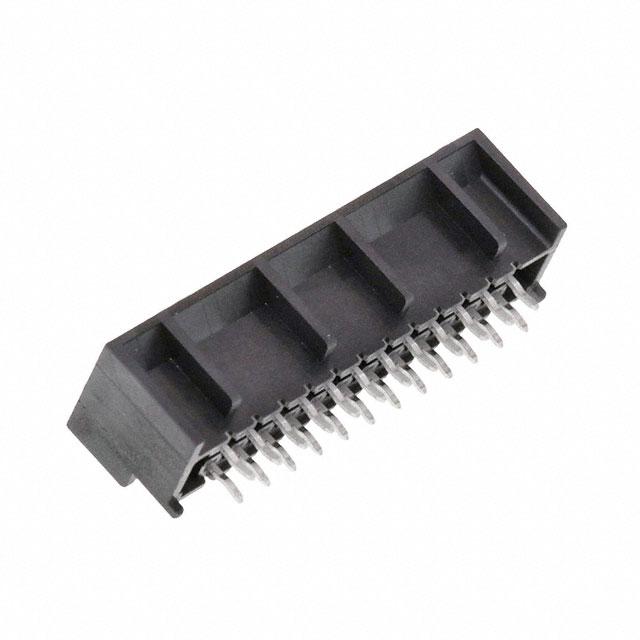

Molex 0449141201

0449141201 Molex
0449141201
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
12
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.390" (9.91mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0449141201 Models
Applications:
General Purpose, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3311259
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Package:
Tray
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
200.0µin (5.08µm)
Fastening Type:
Locking Ramp
Termination:
Press-Fit, Solder
standardLeadTime:
7 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.125" (3.18mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Micro-Fit 3.0 CPI 44914
Contact Type:
Male Pin
Contact Material:
Modified Tin/Brass Alloy
Base Product Number:
044914
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0449141201. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 12. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.390" (9.91mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in general purpose, medical, military, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It is shipped in tray package . It carries 0.118" (3.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 200.0µin (5.08µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features press-fit, solder termination style. It has a long 7 weeks standard lead time. 0.125" (3.18mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product micro-fit 3.0 cpi 44914, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy modified tin/brass alloy materials. Moreover, it corresponds to 044914, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Micro-Fit 3.0 Overview(Product Brief)
pdf icon
449141201 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Location 15/Dec/2021(PCN Assembly/Origin)
pdf icon
43045 Prod Spec(Datasheets)
pdf icon
Packaging Improvement 06/Sep/2018(PCN Packaging)
pdf icon
44914-1201.pdf(3D Drawings)
pdf icon
044914 Drawing(Product Drawings)
