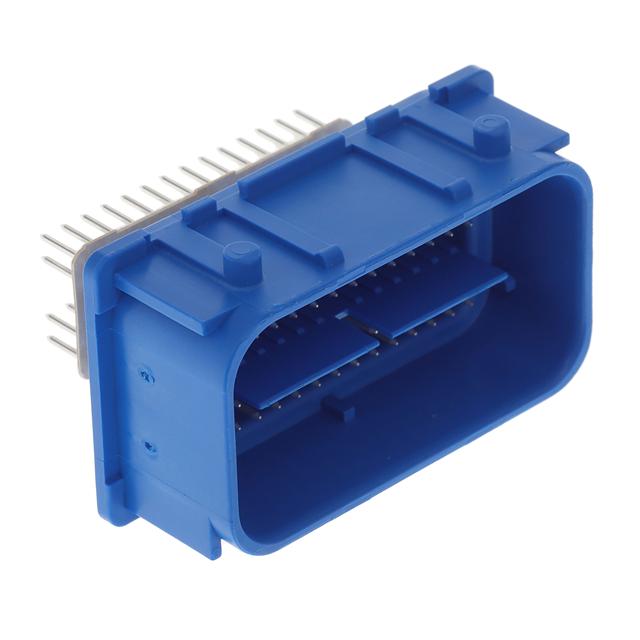

Molex 0313862020

0313862020 Molex
Molex

Product Information

Contact Finish - Mating:
Silver
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Number of Positions:
56
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.848" (21.54mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0313862020 Models
Applications:
Automotive
Number of Rows:
4
Material Flammability Rating:
-
edacadModelUrl:
/en/models/5874065
Insulation Color:
Blue
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
74.8µin (1.90µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.256" (6.50mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
MX123 31386
Contact Type:
Male Pin
Contact Material:
-
Base Product Number:
031386
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0313862020. It has nice contact finishing of silver. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 200.0µin (5.08µm) of post thickness. The product carries possible position value of 56. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.848" (21.54mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive. It comes in 4 of rows. In addition, blue is the insulation color of the product. It has a typical square shape. It has a robust polybutylene terephthalate (pbt), glass filled insulation material. It is shipped in bulk package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. However, 74.8µin (1.90µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. 0.256" (6.50mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product mx123 31386, is a highly preferred choice for users. It has typical contact type of male pin. Moreover, it corresponds to 031386, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Devs Supplier 20/Oct/2022(PCN Assembly/Origin)
pdf icon
Multiple Devices Shipping Location 20/Mar/2020(PCN Other)
pdf icon
31386-2020.pdf(3D Drawings)
pdf icon
0313862020 Drawing(Product Drawings)
