Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
12
Contact Finish - Post:
Tin
edacadModel:
0194270012 Models
Overall Contact Length:
-
Insulation Height:
1.247" (31.67mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3183250
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.230" (5.84mm)

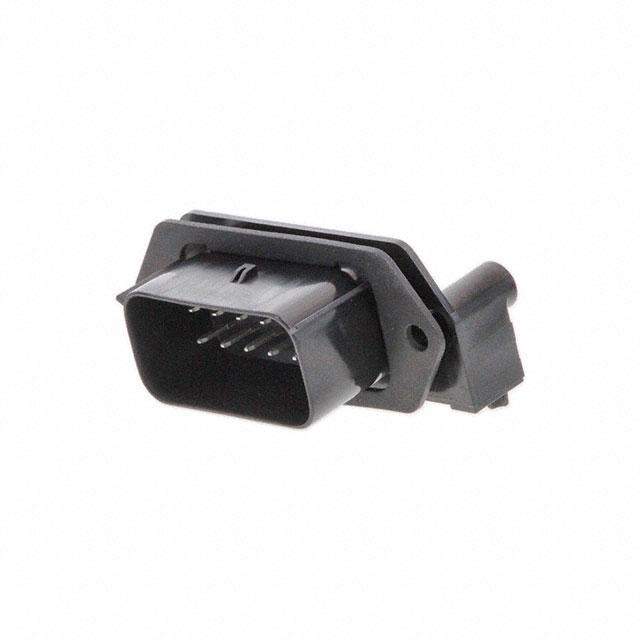

Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
26 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.130" (3.30mm)
Pitch - Mating:
0.230" (5.84mm)
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Guide, Mounting Flange
Mounting Type:
Panel Mount, Through Hole, Right Angle
Series:
MX150L 19427
Packaging:
Tray
Insulation Material:
Polybutylene Terephthalate (PBT), Glass Filled
Contact Type:
Male Blade
Contact Material:
Copper Alloy
Base Product Number:
019427
ECCN:
EAR99
