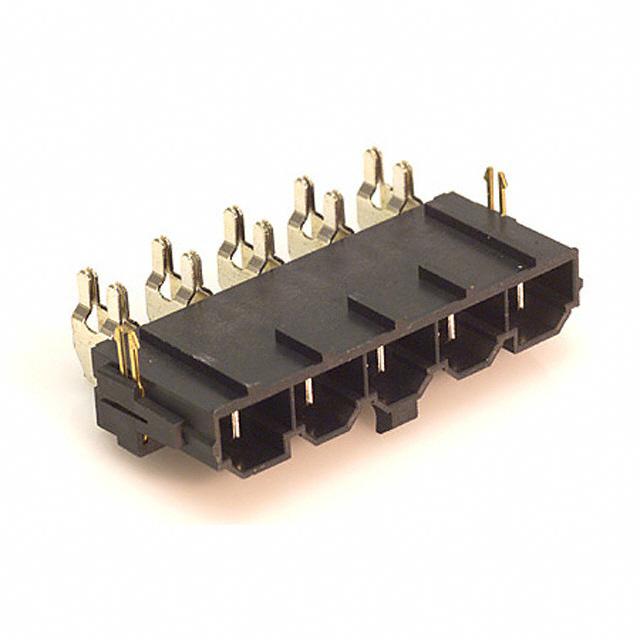

Molex 0428205212

0428205212 Molex
0428205212
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
5
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.421" (10.70mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
0428205212 Models
Applications:
Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/283489
Insulation Color:
Black
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Package:
Tube
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
7 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.394" (10.00mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Series:
Mini-Fit Sr 42820
Contact Type:
Male Blade
Contact Material:
Copper Zirconium Alloy
Base Product Number:
042820
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0428205212. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 5. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.421" (10.70mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical rectangular shape. It has a robust polyamide (pa46), nylon 4/6, glass filled insulation material. It is shipped in tube package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 7 weeks standard lead time. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.394" (10.00mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. The product mini-fit sr 42820, is a highly preferred choice for users. It has typical contact type of male blade. The product is made from sturdy copper zirconium alloy materials. Moreover, it corresponds to 042820, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
42820-5212 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Supplier 20/Oct/2022(PCN Assembly/Origin)
pdf icon
42815-001 Series Prod Spec(Datasheets)
pdf icon
Mini-Fit Sr Test Summary(Other Related Documents)
pdf icon
0428205212.pdf(3D Drawings)
pdf icon
42820-yyyy Drawing(Product Drawings)
