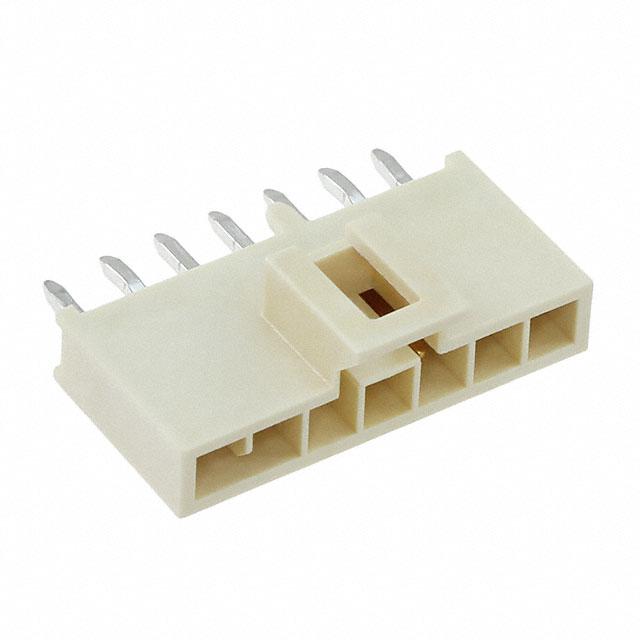

Molex 1053092207

1053092207 Molex
1053092207
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
59.0µin (1.50µm)
Number of Positions:
7
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.356" (9.05mm)
Voltage Rating:
250V
REACH Status:
REACH Unaffected
edacadModel:
1053092207 Models
Applications:
Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Number of Rows:
1
Material Flammability Rating:
-
edacadModelUrl:
/en/models/6164137
Insulation Color:
Natural
Contact Shape:
Square
Mated Stacking Heights:
21.30mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tray
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
15.0µin (0.38µm)
Fastening Type:
Latch Holder
Termination:
Kinked Pin, Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Through Hole
Series:
Nano-Fit 105309
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
105309
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 1053092207. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 59.0µin (1.50µm) of post thickness. The product carries possible position value of 7. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.356" (9.05mm) of insulation height. Moreover, the product has a nominal 250v voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, medical, military, telecommunications. It comes in 1 of rows. In addition, natural is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 21.30mm. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tray package . header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is not applicable. However, 15.0µin (0.38µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features kinked pin, solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.126" (3.20mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in through hole configuration. The product nano-fit 105309, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to 105309, a base product number of the product. The product is designated with the ear99 code number.
