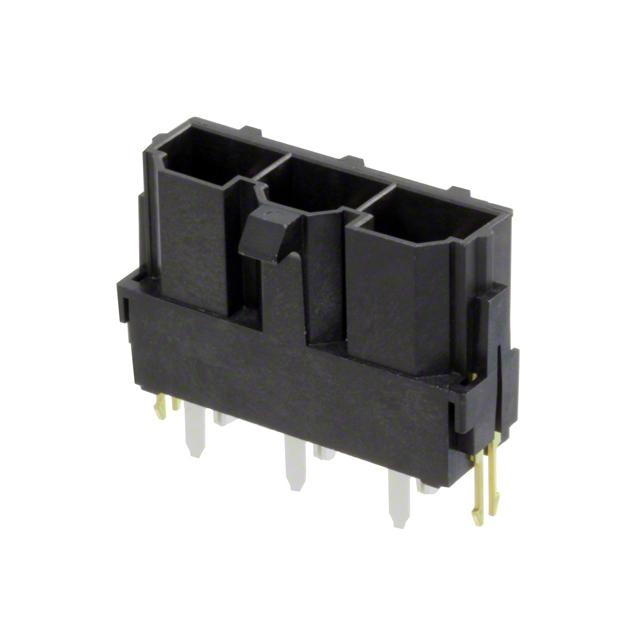

Molex 0428193233

0428193233 Molex
0428193233
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
3
Contact Finish - Post:
Tin
edacadModel:
0428193233 Models
Overall Contact Length:
-
title:
0428193233
Insulation Height:
0.827" (21.00mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3310031
Contact Shape:
Rectangular
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
27 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.201" (5.11mm)
Pitch - Mating:
0.394" (10.00mm)
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole
Series:
Mini-Fit Sr 42819
Packaging:
Tray
Insulation Material:
Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Type:
Male Blade
Contact Material:
Copper Zirconium Alloy
Base Product Number:
042819
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0428193233. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 3. It has possible tin contact post finishing. 0.827" (21.00mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, industrial, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 27 weeks standard lead time. 0.201" (5.11mm) is the given possible contact length (post) values. It has 0.394" (10.00mm) of pitch-mating value. The splendid features of the product include board lock. The product is available in through hole configuration. The product mini-fit sr 42819, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa46), nylon 4/6, glass filled insulation material. It has typical contact type of male blade. The product is made from sturdy copper zirconium alloy materials. Moreover, it corresponds to 042819, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
428193233 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Equipment Transfer 21/Jun/2024(PCN Assembly/Origin)
pdf icon
42815-001 Series Prod Spec(Datasheets)
pdf icon
Mini-Fit Sr Test Summary(Other Related Documents)
pdf icon
42819-3233.pdf(3D Drawings)
pdf icon
0428193233 Drawing(Product Drawings)
