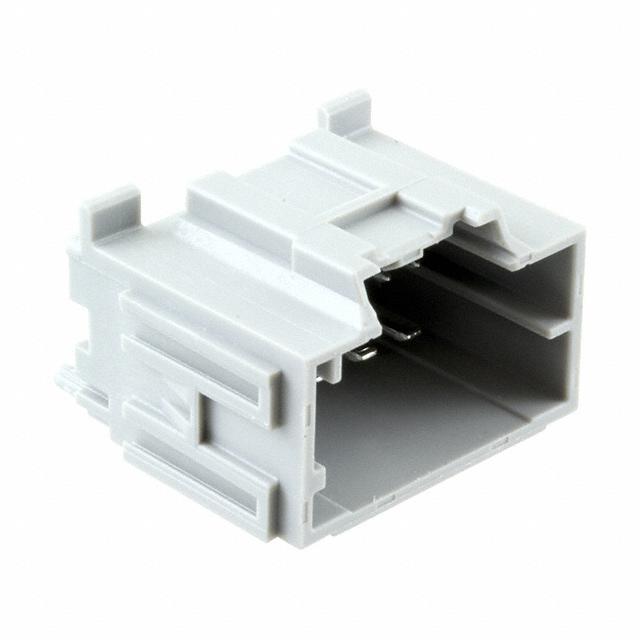

Molex 0346950101

0346950101 Molex
0346950101
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 100°C
Contact Finish Thickness - Post:
-
Number of Positions:
10 (6 + 4 Power)
Contact Finish - Post:
Tin
edacadModel:
0346950101 Models
Overall Contact Length:
-
title:
0346950101
Insulation Height:
1.104" (28.04mm)
Insulation Color:
Gray
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/2520772
Contact Shape:
Rectangular, Square
Mated Stacking Heights:
-
Voltage Rating:
500V
Row Spacing - Mating:
0.248" (6.30mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
-
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
16 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.117" (2.97mm)
Pitch - Mating:
-
Ingress Protection:
-
Features:
Board Guide, Solder Retention
Mounting Type:
Through Hole
Series:
Stac64 34695
Packaging:
Tray
Insulation Material:
Syndiotactic Polystyrene (SPS), Glass Filled
Contact Type:
Male Blade; Male Pin
Contact Material:
Copper Alloy
Base Product Number:
034695
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0346950101. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 100°c operating temperature range. The product carries possible position value of 10 (6 + 4 power). It has possible tin contact post finishing. 1.104" (28.04mm) of insulation height. In addition, gray is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive. It comes in 2 of rows. It has a typical rectangular, square shape. Moreover, the product has a nominal 500v voltage rating. It carries 0.248" (6.30mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 16 weeks standard lead time. 0.117" (2.97mm) is the given possible contact length (post) values. The splendid features of the product include board guide, solder retention. The product is available in through hole configuration. The product stac64 34695, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust syndiotactic polystyrene (sps), glass filled insulation material. It has typical contact type of male blade; male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 034695, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
0346950101 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Capacity Change 05/Jun/2024(PCN Assembly/Origin)
pdf icon
0346950101(Datasheets)
pdf icon
Stac64 System Application Spec(Datasheets)
pdf icon
Mult Devs Packaging 14/Sep/2023(PCN Packaging)
pdf icon
Mult Devs Cancel Packaging Change 28/Dec/2023(PCN Packaging)
pdf icon
0346950101.pdf(3D Drawings)
pdf icon
0346950101(Product Drawings)
