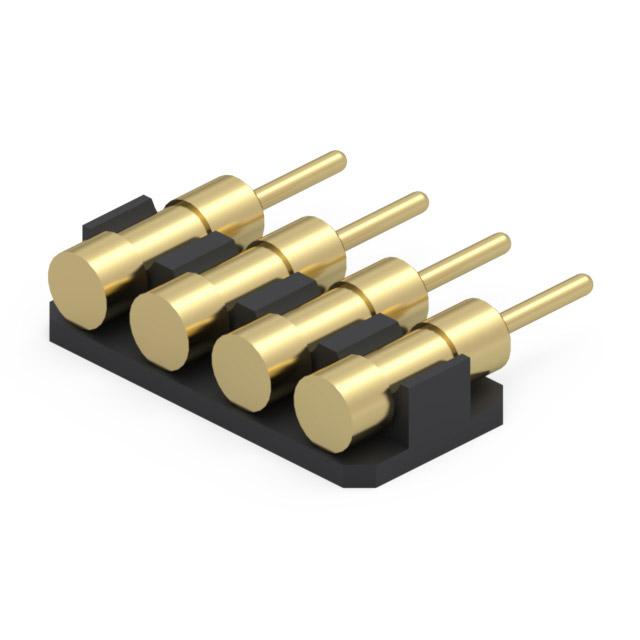

Mill-Max Manufacturing Corp. 328-10-104-40-020001

328-10-104-40-020001 Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

Product Information

The Mill-Max Manufacturing Corp. 328-10-104-40-020001 is a special board-to-board connector header with a classic gold finish. The product's benefits are the surface-mount configuration, durability, reliability, easy integration, cost-effectiveness, and high efficiency.



Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Contact Finish Thickness - Post:
10.0µin (0.25µm)
Number of Positions:
4
Overall Contact Length:
0.330" (8.38mm)
Insulation Height:
0.083" (2.10mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
-
Applications:
-
Number of Rows:
1
Material Flammability Rating:
-
Insulation Color:
Black
Contact Shape:
Circular
Mated Stacking Heights:
-
Insulation Material:
Polyamide (PA46), Nylon 4/6
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.125" (3.18mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
2 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
328
Contact Type:
Male Pin
Contact Material:
Brass Alloy
Base Product Number:
328-10
ECCN:
EAR99
Checking for live stock

The 328-10-104-40-020001 is a board-to-board connector header manufactured by Mill-Max Manufacturing Corp. This connector header is designed for surface-mount applications and features a gold finish. It provides a reliable and secure connection between printed circuit boards (PCBs), making it suitable for various electronic devices and systems.

Product Specifications:

The following specifications characterize the 328-10-104-40-020001 connector header:

  • Model Number: 328-10-104-40-020001
  • Manufacturer: Mill-Max Manufacturing Corp.
  • Finish: Gold
  • Connector Type: Board-to-Board
  • Mounting Style: Surface-Mount.

Features of 328-10-104-40-020001 Connector Header:

This connector header offers several key features that contribute to its overall performance and functionality:

  • Gold Finish: The gold plating on the connector ensures excellent conductivity and corrosion resistance, leading to reliable electrical connections.
  • Board-to-Board Connection: The connector header facilitates a secure connection between two PCBs, transferring signals and power between them.
  • Surface-Mount Design: The surface-mount configuration allows for easy installation and compatibility with modern PCB assembly processes.
  • Durability: The connector header is built to withstand demanding environmental conditions, ensuring long-term reliability and durability.
  • Versatility: The 328-10-104-40-020001 suits various applications, including consumer electronics, telecommunications, industrial equipment, and automotive systems.

Benefits of 328-10-104-40-020001:

The 328-10-104-40-020001 connector header offers several advantages to users and manufacturers:

  • Enhanced Performance: The gold plating improves electrical conductivity, reducing signal loss and ensuring efficient data transmission.
  • Easy Integration: The surface-mount design simplifies the assembly process, saving time and effort during production.
  • Space Optimization: The compact size of the connector header allows for efficient use of PCB real estate, making it ideal for devices with limited space.
  • Reliability: The high-quality construction and gold finish contribute to the connector's durability and long-term performance, minimizing the risk of connection failures.
