Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
8
Contact Finish - Post:
Tin
edacadModel:
10132449-0821GLF Models
Overall Contact Length:
-
title:

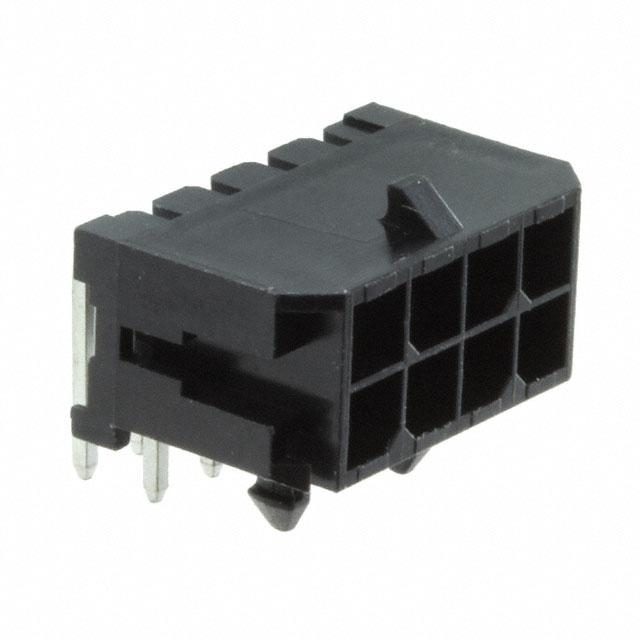

10132449-0821GLF
Insulation Height:
0.343" (8.71mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
General Purpose, Medical, Military, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7590889
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250V
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
60.0µin (1.52µm)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.126" (3.20mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Board Lock, Glow Wire Compliant
Mounting Type:
Through Hole, Right Angle
Series:
Minitek® Pwr 3.0 High Current
Packaging:
Tray
Insulation Material:
Polyamide (PA9T), Nylon 9T
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
10132449
ECCN:
EAR99
