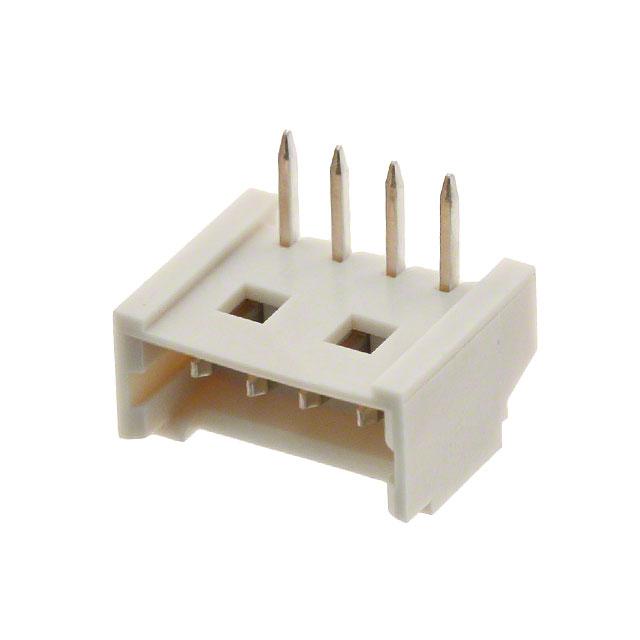

Molex 0530480410

0530480410 Molex
0530480410
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
0530480410 Models
Overall Contact Length:
-
Insulation Height:
0.138" (3.50mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/242866
Contact Shape:
Rectangular
Contact Finish Thickness - Mating:
-
Voltage Rating:
125V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Blade
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
47 Weeks
Current Rating (Amps):
Varies by Wire Gauge
Contact Length - Post:
0.091" (2.30mm)
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
PicoBlade 53048
Packaging:
Tray
Insulation Material:
Polyamide (PA), Nylon
Contact Material:
Phosphor Bronze
Base Product Number:
053048
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0530480410. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. The product carries possible position value of 4. It has possible tin contact post finishing. 0.138" (3.50mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. Moreover, the product has a nominal 125v voltage rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male blade. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 47 weeks standard lead time. Additionally, the product's output is varies by wire gauge. 0.091" (2.30mm) is the given possible contact length (post) values. It has 0.049" (1.25mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product picoblade 53048, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 053048, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
530480410 RoHS Cert of Compliance(Environmental Information)
pdf icon
53048 Series Location 23/Jul/2023(PCN Assembly/Origin)
pdf icon
510210000 Appl Spec(Datasheets)
pdf icon
53048-0410(Datasheets)
pdf icon
0530480410.pdf(3D Drawings)
