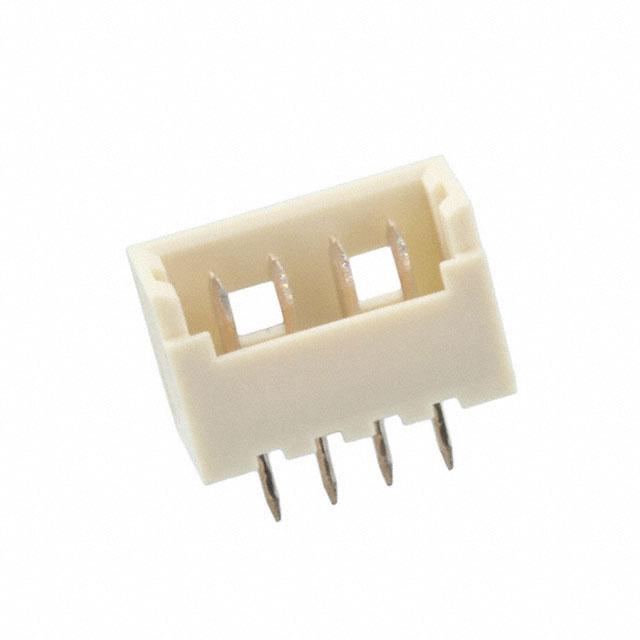

Molex 0530470410

0530470410 Molex
0530470410
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
0530470410 Models
Overall Contact Length:
-
Insulation Height:
0.165" (4.20mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/242855
Contact Shape:
Rectangular
Contact Finish Thickness - Mating:
35.4µin (0.90µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.089" (2.25mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Blade
Fastening Type:
Detent Lock
Termination:
Solder
standardLeadTime:
47 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.091" (2.30mm)
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
PicoBlade 53047
Packaging:
Tray
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Material:
Phosphor Bronze
Base Product Number:
053047
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0530470410. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product carries possible position value of 4. It has possible tin contact post finishing. 0.165" (4.20mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. However, 35.4µin (0.90µm) is the "Contact Finish Thickness - Mating" of the product. header Connector type offer robust functionality. It is 0.089" (2.25mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male blade. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. It has a long 47 weeks standard lead time. 0.091" (2.30mm) is the given possible contact length (post) values. It has 0.049" (1.25mm) of pitch-mating value. The product is available in through hole configuration. The product picoblade 53047, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 053047, a base product number of the product. The product is designated with the ear99 code number.
