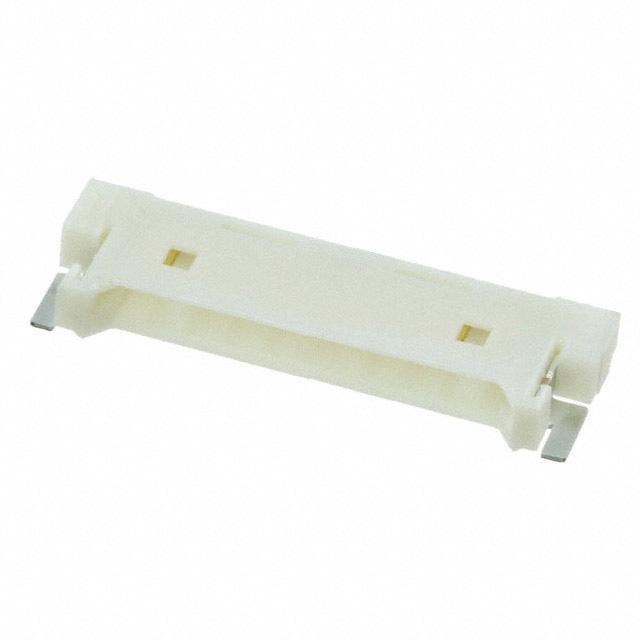

Molex 0537801070

0537801070 Molex
Molex

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Detailed Description:
Connector Header Surface Mount, Right Angle 10 position 0.049" (1.25mm)
Operating Temperature:
-40°C ~ 85°C
Contact Finish Thickness - Post:
118.1µin (3.00µm)
Number of Positions:
10
Base Part Number:
053780
Insulation Height:
0.073" (1.85mm)
Insulation Color:
Natural
Shrouding:
Shrouded - 4 Wall
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Molex
Voltage Rating:
125V
Connector Type:
Header
Contact Length - Mating:
0.102" (2.60mm)
Number of Positions Loaded:
All
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Detent Lock
Termination:
Solder
Current Rating (Amps):
Varies by Wire Gauge
Pitch - Mating:
0.049" (1.25mm)
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
PanelMate 53780
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Male Pin
Contact Finish - Post:
Tin
Insulation Material:
Polyphenylene Sulfide (PPS)
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0537801070. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It features connector header surface mount, right angle 10 position 0.049" (1.25mm). The product has -40°c ~ 85°c operating temperature range. Additionally, it features 118.1µin (3.00µm) of post thickness. The product carries possible position value of 10. Base Part Number: 053780. 0.073" (1.85mm) of insulation height. In addition, natural is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The molex's product offers user-desired applications. Moreover, the product has a nominal 125v voltage rating. header Connector type offer robust functionality. It is 0.102" (2.60mm) contact mated. However, all is the Number of Positions Loaded. However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, detent lock is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is varies by wire gauge. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product panelmate 53780, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of male pin. It has possible tin contact post finishing. It has a robust polyphenylene sulfide (pps) insulation material. The product is made from sturdy phosphor bronze materials.

pdf icon
51146-010 Prod Spec(Datasheets)
pdf icon
537801070 Drawing(Datasheets)
pdf icon
0537801070.pdf(3D Drawings)
