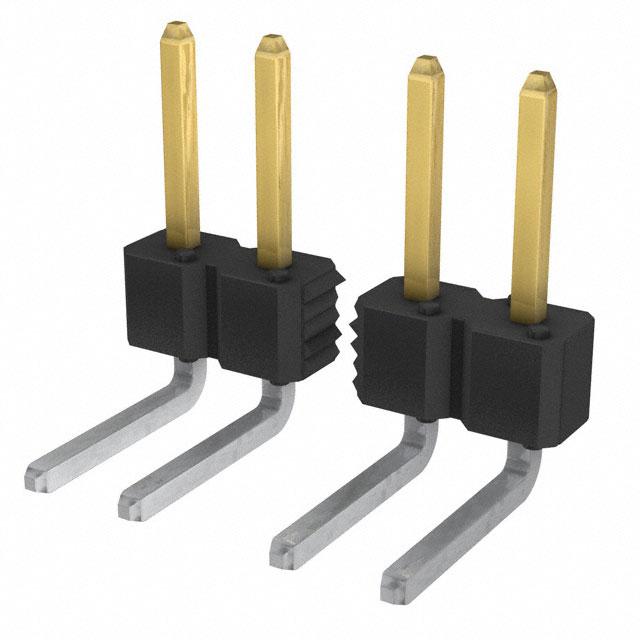

Amphenol ICC (FCI) 77315-102-08LF

77315-102-08LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Gold or Gold, GXT™
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-65°C ~ 125°C
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
8
Contact Finish - Post:
Tin
edacadModel:
77315-102-08LF Models
Overall Contact Length:
-
Insulation Height:
0.094" (2.40mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4413710
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.225" (5.72mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
3A per Contact
Contact Length - Post:
0.201" (5.11mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
BERGSTIK®
Packaging:
Bag
Insulation Material:
Thermoplastic
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
77315
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 77315-102-08LF. It has nice contact finishing of gold or gold, gxt™. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -65°c ~ 125°c operating temperature range. Additionally, it features 78.7µin (2.00µm) of post thickness. The product carries possible position value of 8. It has possible tin contact post finishing. 0.094" (2.40mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. header, breakaway Connector type offer robust functionality. It is 0.225" (5.72mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 3a per contact. 0.201" (5.11mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product bergstik®, is a highly preferred choice for users. In addition, bag is the available packaging type of the product. It has a robust thermoplastic insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 77315, a base product number of the product. The product is designated with the ear99 code number.
