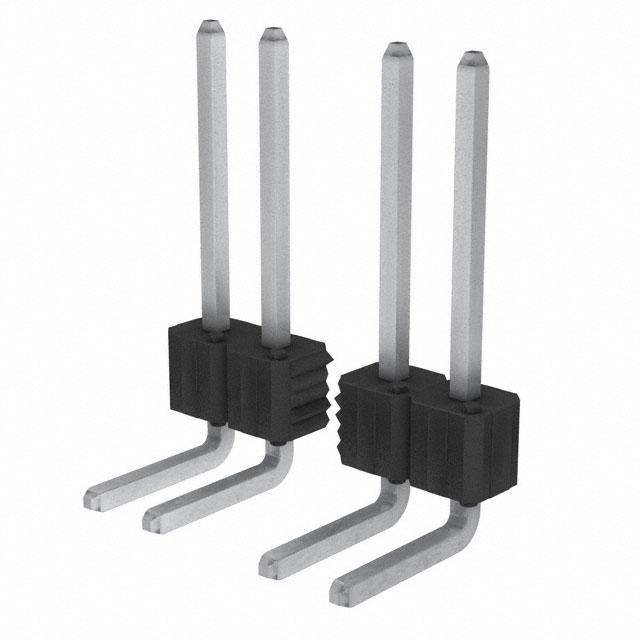

Amphenol ICC (FCI) 10082201-406K06LF

10082201-406K06LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-65°C ~ 130°C
Number of Positions:
6
Overall Contact Length:
-
Insulation Height:
0.094" (2.40mm)
Insulation Color:
Black
Shrouding:
Unshrouded
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header, Breakaway
Contact Length - Mating:
0.374" (9.50mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
3A per Contact
Contact Length - Post:
0.169" (4.30mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
BERGSTIK®
Packaging:
Bag
Insulation Material:
Thermoplastic
ECCN:
EAR99
Base Product Number:
10082201
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 10082201-406K06LF. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -65°c ~ 130°c operating temperature range. The product carries possible position value of 6. 0.094" (2.40mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 78.7µin (2.00µm) is the "Contact Finish Thickness - Mating" of the product. header, breakaway Connector type offer robust functionality. It is 0.374" (9.50mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. Additionally, the product's output is 3a per contact. 0.169" (4.30mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product bergstik®, is a highly preferred choice for users. In addition, bag is the available packaging type of the product. It has a robust thermoplastic insulation material. The product is designated with the ear99 code number. Moreover, it corresponds to 10082201, a base product number of the product. The product is made from sturdy phosphor bronze materials.

pdf icon
10082201 Drawing(Datasheets)
