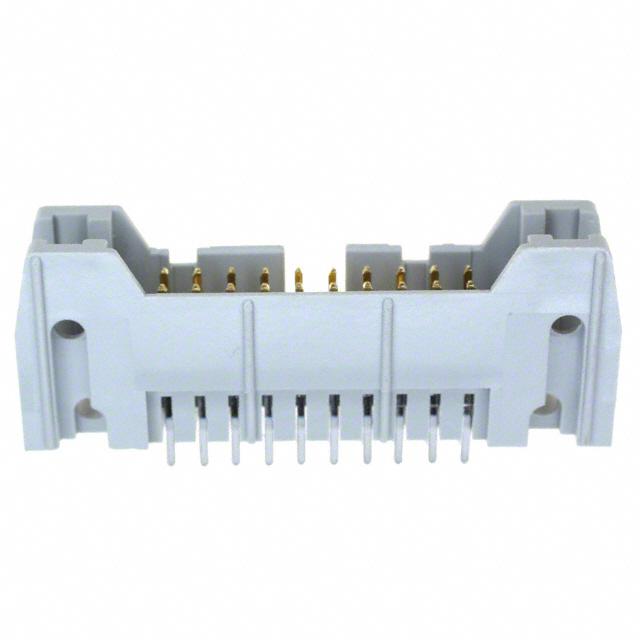

Amphenol ICC (Commercial Products) 8428162030035

8428162030035 Amphenol ICC (Commercial Products)
Amphenol ICC (Commercial Products)

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Solder Plated
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-55°C ~ 105°C
Number of Positions:
20
Overall Contact Length:
-
Insulation Height:
0.690" (17.52mm)
Insulation Color:
Gray
Shrouding:
Shrouded - 2 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.240" (6.10mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
0.109" (2.76mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
816
Packaging:
Bulk
Insulation Material:
Thermoplastic, Glass Filled
ECCN:
EAR99
Base Product Number:
84281
Contact Material:
Phosphor Bronze
Checking for live stock

This is manufactured by Amphenol ICC (Commercial Products). The manufacturer part number is 8428162030035. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible solder plated contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 20. 0.690" (17.52mm) of insulation height. In addition, gray is the insulation color of the product. Furthermore, a bespoke product features shrouded - 2 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.240" (6.10mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. 0.109" (2.76mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product 816, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust thermoplastic, glass filled insulation material. The product is designated with the ear99 code number. Moreover, it corresponds to 84281, a base product number of the product. The product is made from sturdy phosphor bronze materials.

pdf icon
816 Protected Header(Datasheets)
