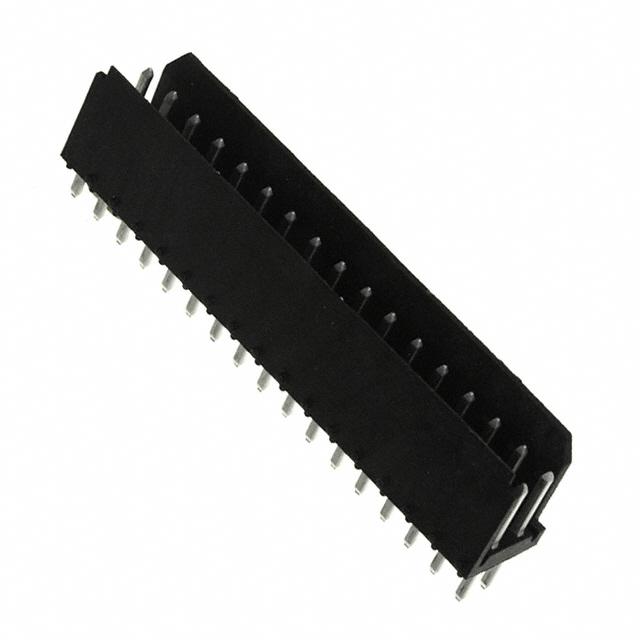

Amphenol ICC (FCI) 76385-417LF

76385-417LF Amphenol ICC (FCI)
Amphenol ICC (FCI)

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Operating Temperature:
-40°C ~ 125°C
Contact Finish Thickness - Post:
78.7µin (2.00µm)
Number of Positions:
34
Contact Finish - Post:
Tin
Shrouding:
Shrouded - 2 Wall
Overall Contact Length:
0.411" (10.44mm)
Insulation Height:
0.368" (9.35mm)
Voltage Rating:
-
REACH Status:
REACH Affected
edacadModel:
76385-417LF Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/1001676
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Insulation Material:
Thermoplastic, Glass Filled
Package:
Tube
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.197" (5.00mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
78.7µin (2.00µm)
Fastening Type:
Friction Lock
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Dubox™
Contact Type:
Male Pin
Contact Material:
Copper Alloy
Base Product Number:
76385
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol ICC (FCI). The manufacturer part number is 76385-417LF. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -40°c ~ 125°c operating temperature range. Additionally, it features 78.7µin (2.00µm) of post thickness. The product carries possible position value of 34. It has possible tin contact post finishing. Furthermore, a bespoke product features shrouded - 2 wall. The product has a 0.411" (10.44mm) of overall contact lentgh. 0.368" (9.35mm) of insulation height. In addition, it is reach affected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It has a robust thermoplastic, glass filled insulation material. It is shipped in tube package . It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.197" (5.00mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 78.7µin (2.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is 3a. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product dubox™, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 76385, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Color chg 05/APR/2022(PCN Design/Specification)
pdf icon
76624(Datasheets)
