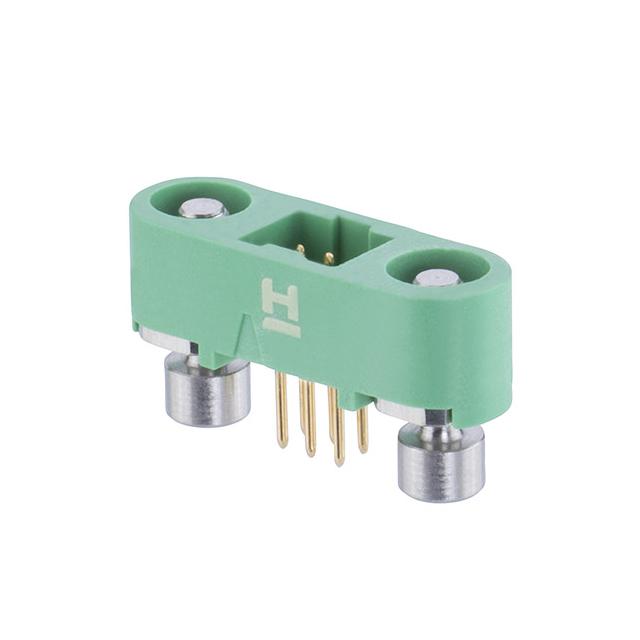

Harwin Inc. G125-MV10605M3R

G125-MV10605M3R Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 150°C
Number of Positions:
6
Overall Contact Length:
-
Insulation Height:
0.193" (4.90mm)
Insulation Color:
Green
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Voltage Rating:
450V
Row Spacing - Mating:
0.049" (1.25mm)
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Threaded
Termination:
Solder
Current Rating (Amps):
2A
Contact Length - Post:
0.118" (3.00mm)
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
Mating Flange, Mounting Flange, Pick and Place, Polarizing Key
Mounting Type:
Through Hole
Series:
Gecko SL Reverse Fix
Packaging:
Tape & Reel (TR)
Insulation Material:
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Contact Material:
Phosphor Bronze
Base Product Number:
G125-MV1
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is G125-MV10605M3R. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 150°c operating temperature range. The product carries possible position value of 6. 0.193" (4.90mm) of insulation height. In addition, green is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 450v voltage rating. It carries 0.049" (1.25mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, threaded is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 2a. 0.118" (3.00mm) is the given possible contact length (post) values. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include mating flange, mounting flange, pick and place, polarizing key. The product is available in through hole configuration. The product gecko sl reverse fix, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust polyamide (pa4t), nylon 4t, glass filled, halogen free insulation material. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to g125-mv1, a base product number of the product. The product is designated with the ear99 code number.
