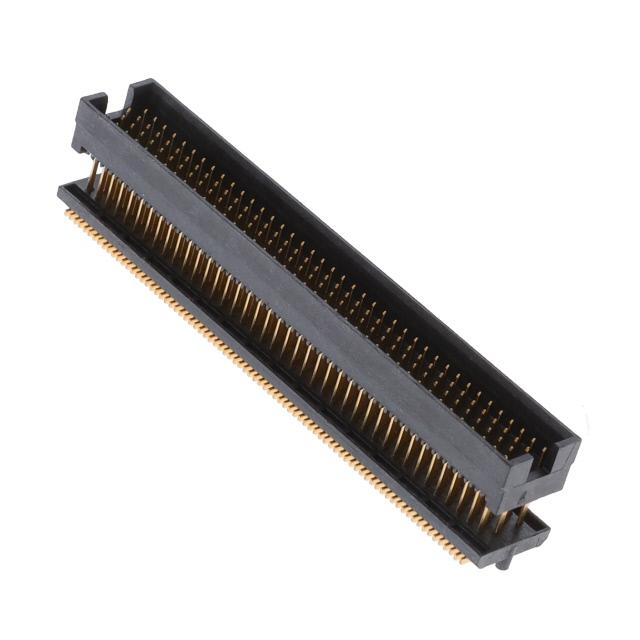

Samtec Inc. TOLC-140-32-S-Q-A

TOLC-140-32-S-Q-A Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
3.00µin (0.076µm)
Number of Positions:
160
Contact Finish - Post:
Gold
Shrouding:
Shrouded - 4 Wall
Overall Contact Length:
-
Insulation Height:
0.442" (11.23mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
TOLC-140-32-S-Q-A Models
Applications:
-
Number of Rows:
4
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9519635
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
12mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Tube
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Header, Elevated
Contact Length - Mating:
0.100" (2.54mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
2.4A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
FOURRAY™ TOLC
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
TOLC-140
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is TOLC-140-32-S-Q-A. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 3.00µin (0.076µm) of post thickness. The product carries possible position value of 160. It has possible gold contact post finishing. Furthermore, a bespoke product features shrouded - 4 wall. 0.442" (11.23mm) of insulation height. In addition, it is reach unaffected. It comes in 4 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 12mm. It has a robust liquid crystal polymer (lcp) insulation material. It is shipped in tube package . It carries 0.050" (1.27mm) of row spacing. header, elevated Connector type offer robust functionality. It is 0.100" (2.54mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 2.4a per contact. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount configuration. The product fourray™ tolc, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to tolc-140, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TOLC Series Datasheet(Datasheets)
pdf icon
TOLC SMT Footprint(Datasheets)
pdf icon
TOLC-1xx-xx-x-Q-xx Drawing(Product Drawings)
