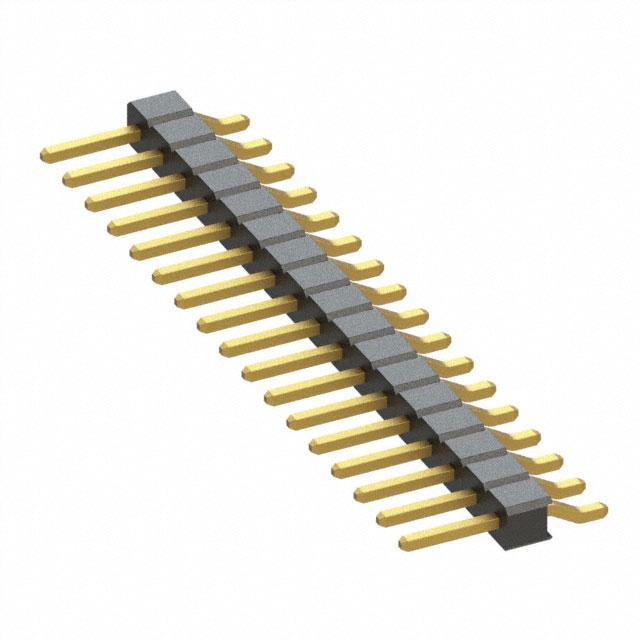

Harwin Inc. M22-5331705

M22-5331705 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
17
Overall Contact Length:
-
Insulation Height:
0.079" (2.00mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
Shrouding:
Unshrouded
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
-
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header, Cuttable
Contact Length - Mating:
0.165" (4.20mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
2A per Contact
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount, Right Angle
Series:
M22
Contact Type:
Male Pin
Contact Material:
Brass
Insulation Material:
Polyamide (PA6T), Nylon 6T
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M22-5331705. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 17. 0.079" (2.00mm) of insulation height. In addition, it is reach unaffected. Furthermore, a bespoke product features unshrouded. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. It is shipped in bulk package . header, cuttable Connector type offer robust functionality. It is 0.165" (4.20mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 2a per contact. It has 0.079" (2.00mm) of pitch-mating value. The product is available in surface mount, right angle configuration. The product m22, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass materials. It has a robust polyamide (pa6t), nylon 6t insulation material. The product is designated with the ear99 code number.

pdf icon
Harwin REACH(Environmental Information)
pdf icon
M22 Series Obs 02/Feb/2015(PCN Obsolescence/ EOL)
pdf icon
M22 Series Catalog(Datasheets)
pdf icon
M22-533 Drawing(Product Drawings)
