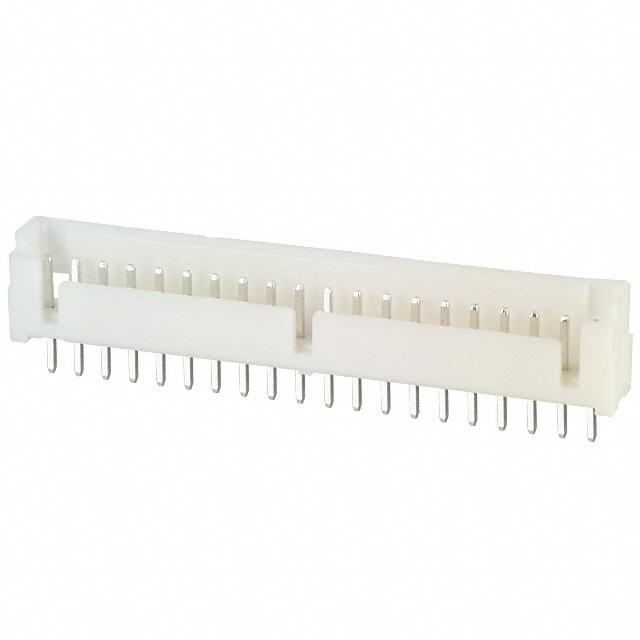

Hirose Electric Co Ltd DF1B-20P-2.5DSA

DF1B-20P-2-5DSA Hirose Electric Co Ltd DF1B-20P-2.5DSA
Hirose Electric Co Ltd

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-35°C ~ 85°C
Number of Positions:
20
Overall Contact Length:
0.417" (10.60mm)
Insulation Height:
0.374" (9.50mm)
Insulation Color:
White
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Contact Finish Thickness - Mating:
-
Voltage Rating:
250V
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.177" (4.50mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.142" (3.60mm)
Pitch - Mating:
0.098" (2.50mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Through Hole
Series:
DF1B
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
Contact Material:
Brass
Base Product Number:
DF1B
ECCN:
EAR99
Checking for live stock

This is manufactured by Hirose Electric Co Ltd. The manufacturer part number is DF1B-20P-2.5DSA. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -35°c ~ 85°c operating temperature range. The product carries possible position value of 20. The product has a 0.417" (10.60mm) of overall contact lentgh. 0.374" (9.50mm) of insulation height. In addition, white is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250v voltage rating. header Connector type offer robust functionality. It is 0.177" (4.50mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. 0.142" (3.60mm) is the given possible contact length (post) values. It has 0.098" (2.50mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in through hole configuration. The product df1b, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. The product is made from sturdy brass materials. Moreover, it corresponds to df1b, a base product number of the product. The product is designated with the ear99 code number.
