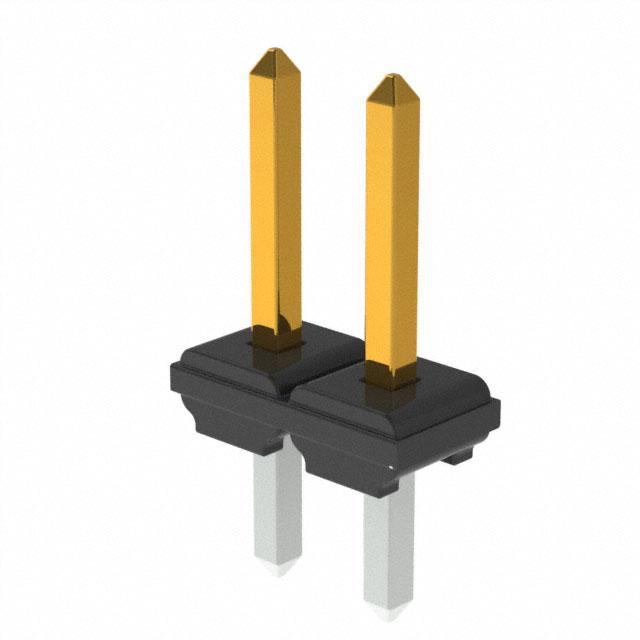

Omron Automation and Safety XJ8B-0211

XJ8B-0211 Omron Automation and Safety
Omron Automation and Safety

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
Operating Temperature:
-55°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
2
Contact Finish - Post:
-
Shrouding:
Unshrouded
Overall Contact Length:
0.339" (8.60mm)
Insulation Height:
0.059" (1.50mm)
Voltage Rating:
300V
REACH Status:
REACH Unaffected
edacadModel:
XJ8B-0211 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2627577
Insulation Color:
Black
Contact Shape:
Square
Contact Finish Thickness - Mating:
5.90µin (0.150µm)
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
0.169" (4.30mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
2A
Contact Length - Post:
0.110" (2.79mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
XJ8
Mated Stacking Heights:
-
Contact Type:
Male Pin
Contact Material:
Brass, Nickel
Insulation Material:
Polyphenylene Sulfide (PPS), Glass Filled
ECCN:
EAR99
Checking for live stock

This is manufactured by Omron Automation and Safety. The manufacturer part number is XJ8B-0211. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 2. Furthermore, a bespoke product features unshrouded. The product has a 0.339" (8.60mm) of overall contact lentgh. 0.059" (1.50mm) of insulation height. Moreover, the product has a nominal 300v voltage rating. In addition, it is reach unaffected. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. However, 5.90µin (0.150µm) is the "Contact Finish Thickness - Mating" of the product. It is shipped in bulk package . header Connector type offer robust functionality. It is 0.169" (4.30mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 2a. 0.110" (2.79mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product xj8, is a highly preferred choice for users. It has typical contact type of male pin. The product is made from sturdy brass, nickel materials. It has a robust polyphenylene sulfide (pps), glass filled insulation material. The product is designated with the ear99 code number.
