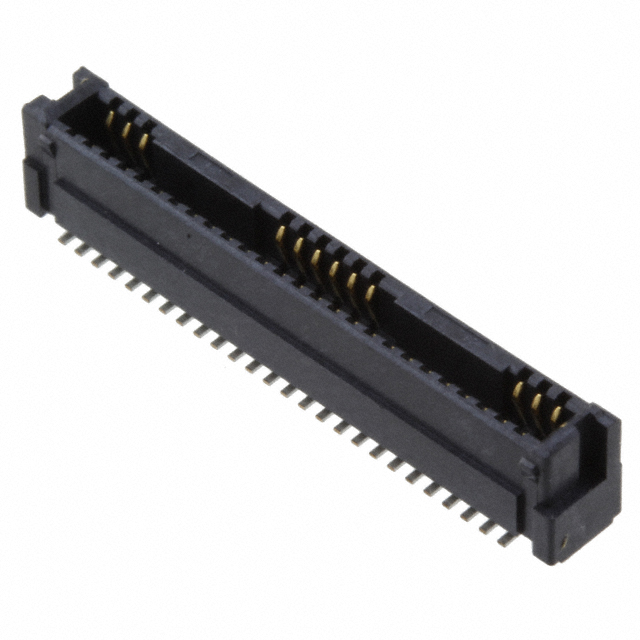

JAE Electronics FK3S026WQ1R1000

FK3S026WQ1R1000 JAE Electronics
JAE Electronics

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
Operating Temperature:
-
Contact Finish Thickness - Post:
-
Number of Positions:
26
Overall Contact Length:
-
Insulation Height:
0.234" (5.95mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
-
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
-
Connector Type:
Header
Contact Length - Mating:
-
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
12.0µin (0.30µm)
Fastening Type:
Friction Lock
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.039" (1.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
FK3
Packaging:
Tape & Reel (TR)
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Contact Type:
Outer Shroud Contact
Contact Material:
Copper Alloy
Base Product Number:
FK3S026
ECCN:
EAR99
Checking for live stock

This is manufactured by JAE Electronics. The manufacturer part number is FK3S026WQ1R1000. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product carries possible position value of 26. 0.234" (5.95mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 12.0µin (0.30µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, friction lock is the Fastening Type of the product. The product features solder termination style. It has 0.039" (1.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount configuration. The product fk3, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It has typical contact type of outer shroud contact. The product is made from sturdy copper alloy materials. Moreover, it corresponds to fk3s026, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices Jul/2012(PCN Obsolescence/ EOL)
pdf icon
FK3S026WQ1 Drawing(Product Drawings)
