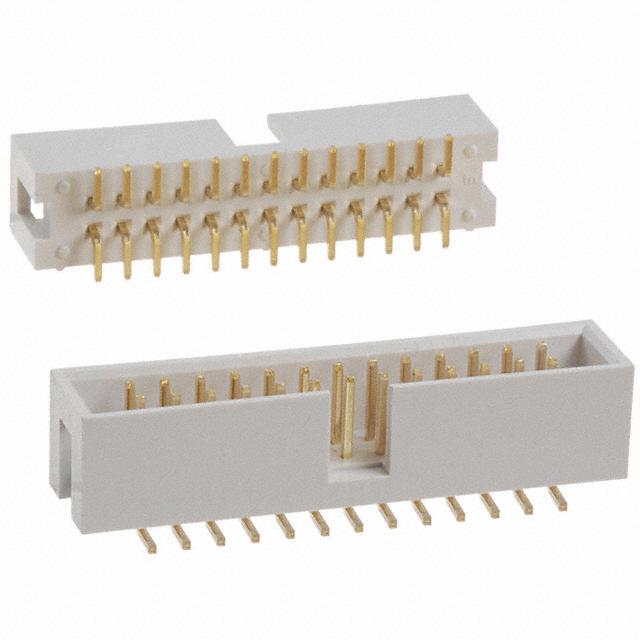

Assmann WSW Components AWHW26-G-SMD-R

AWHW26-G-SMD-R Assmann WSW Components
Assmann WSW Components

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
-
HTSUS:
8536.69.4040
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
-
Number of Positions:
26
Overall Contact Length:
-
title:
AWHW26-G-SMD-R
Insulation Height:
0.354" (9.00mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.232" (5.90mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3A
Contact Length - Post:
-
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Keying Slot, Pick and Place
Mounting Type:
Surface Mount
Series:
-
Packaging:
Tray
Insulation Material:
Polyamide (PA9T), Nylon 9T, Glass Filled
Contact Type:
Male Pin
Contact Material:
Brass
Base Product Number:
AWHW2 26
ECCN:
EAR99
Checking for live stock

This is manufactured by Assmann WSW Components. The manufacturer part number is AWHW26-G-SMD-R. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 26. 0.354" (9.00mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.232" (5.90mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include keying slot, pick and place. The product is available in surface mount configuration. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa9t), nylon 9t, glass filled insulation material. It has typical contact type of male pin. The product is made from sturdy brass materials. Moreover, it corresponds to awhw2 26, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
AWHW-xx G-SMD Drawing(Product Drawings)
pdf icon
Assmann RoHS Cert(Environmental Information)
