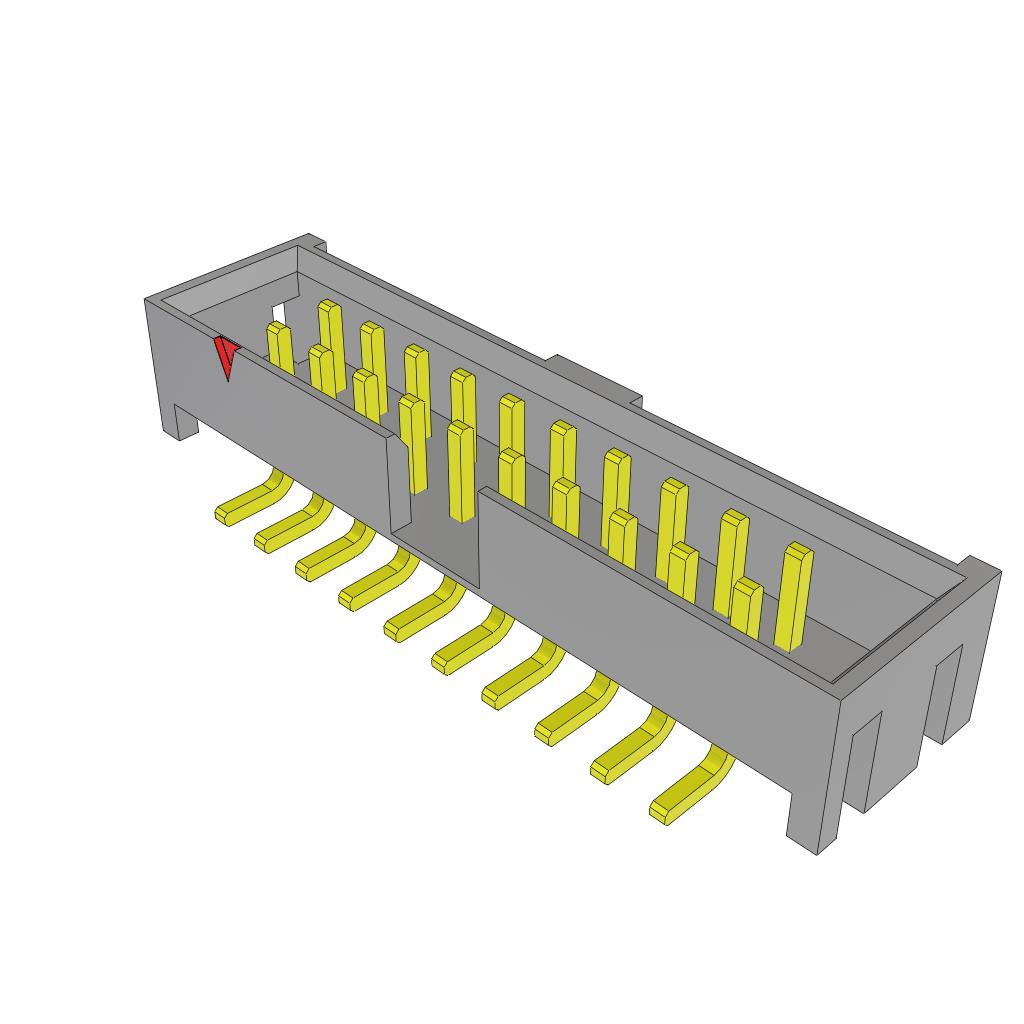

Samtec Inc. STMM-110-02-G-D-SM

STMM-110-02-G-D-SM Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
3.00µin (0.076µm)
Number of Positions:
20
Contact Finish - Post:
Gold
edacadModel:
STMM-110-02-G-D-SM Models
Overall Contact Length:
-
Insulation Height:
0.190" (4.83mm)
Insulation Color:
Black
Shrouding:
Shrouded - 4 Wall
Applications:
-
Number of Rows:
2
Material Flammability Rating:
-
edacadModelUrl:
/en/models/8423930
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header
Contact Length - Mating:
0.120" (3.05mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
20.0µin (0.51µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
3A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Keying Slot
Mounting Type:
Surface Mount
Series:
Flex Stack, STMM
Packaging:
Tube
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Male Pin
Contact Material:
Phosphor Bronze
Base Product Number:
STMM-110
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is STMM-110-02-G-D-SM. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 3.00µin (0.076µm) of post thickness. The product carries possible position value of 20. It has possible gold contact post finishing. 0.190" (4.83mm) of insulation height. In addition, black is the insulation color of the product. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It has a typical square shape. It carries 0.079" (2.00mm) of row spacing. header Connector type offer robust functionality. It is 0.120" (3.05mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 20.0µin (0.51µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. Additionally, the product's output is 3a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include keying slot. The product is available in surface mount configuration. The product flex stack, stmm, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of male pin. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to stmm-110, a base product number of the product. The product is designated with the ear99 code number.
