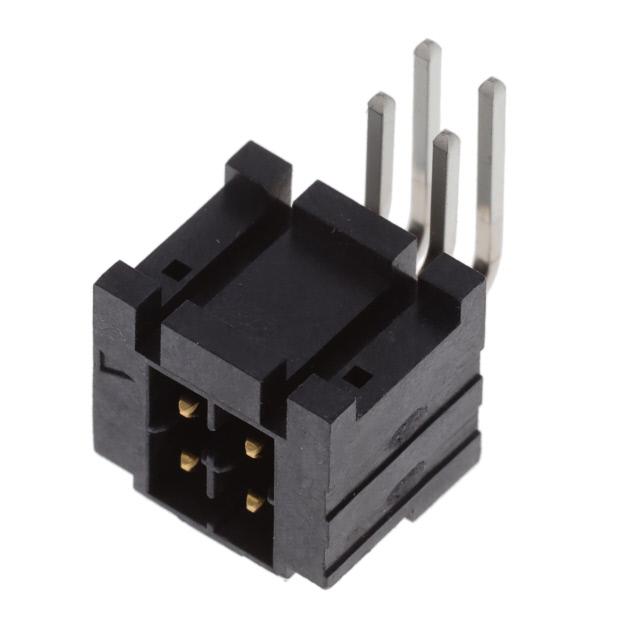

Samtec Inc. IPL1-102-01-L-D-RE1-K

IPL1-102-01-L-D-RE1-K Samtec Inc.
Samtec Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Number of Positions:
4
Contact Finish - Post:
Tin
edacadModel:
IPL1-102-01-L-D-RE1-K Models
Overall Contact Length:
-
Insulation Height:
0.325" (8.25mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
Shrouding:
Shrouded - 4 Wall
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/8059075
Contact Shape:
Square
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Voltage Rating:
675VAC, 954VDC
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Header
Contact Length - Mating:
0.215" (5.46mm)
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Male Pin
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
6 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.085" (2.16mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
Mini Mate® IPL1
Packaging:
Tube
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Material:
Phosphor Bronze
Base Product Number:
IPL1-102
ECCN:
EAR99
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is IPL1-102-01-L-D-RE1-K. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 4. It has possible tin contact post finishing. 0.325" (8.25mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. Furthermore, a bespoke product features shrouded - 4 wall. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 675vac, 954vdc voltage rating. It carries 0.100" (2.54mm) of row spacing. header Connector type offer robust functionality. It is 0.215" (5.46mm) contact mated. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of male pin. Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 6 weeks standard lead time. 0.085" (2.16mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product mini mate® ipl1, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to ipl1-102, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
IPL1 Series Datasheet 02(HTML Datasheet)
pdf icon
IPL1 Series Datasheet(Datasheets)
pdf icon
IPD1 Series Other Related Documents 03(Other Related Documents)
pdf icon
IPL1 Series Other Related Documents 01(Other Related Documents)
